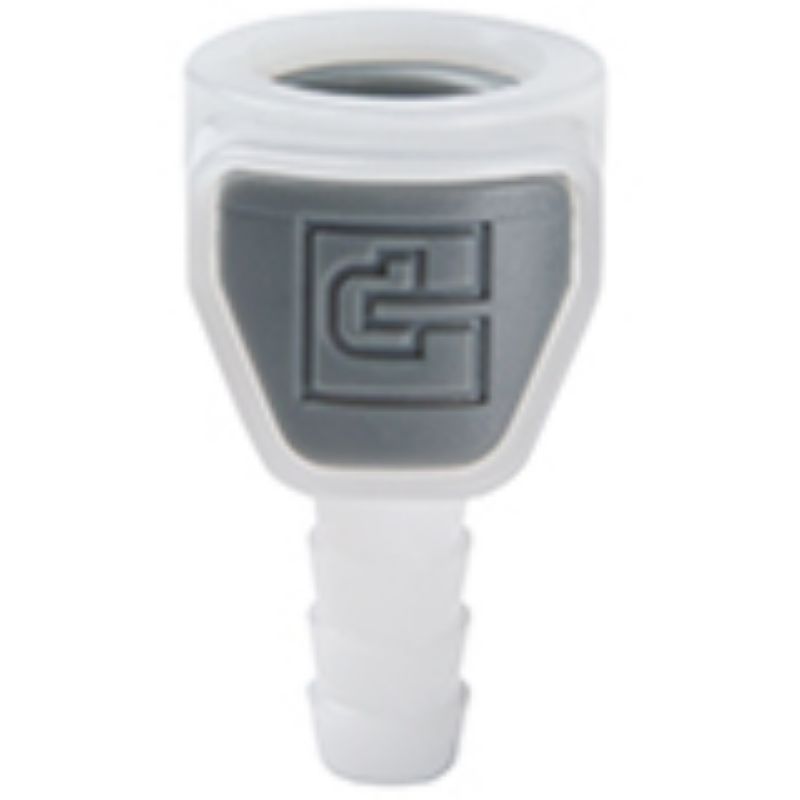

Parker PPA-253-6HBSB - PPA Series Couplers - OBSOLETE

Note: This product is no longer available from Parker. Parker's thermoplastic quick couplers and nipples are ideal for use across a broad range of low pressure applications where fluid or gas lines require fast and easy connection and disconnection.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PPA-253-6HBSB

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-40	Body Material	Delrin® Acetal
Coupling Half	Coupler	Media	Air, fluids and chemicals
Body Size	1/4	Sleeve Type	Push to Connect
Spring Material	Stainless Steel	Flow Rate	1.4
Application	Vacuum	Valve Type	Unvalved
Maximum Operating Pressure	120	Lock Type	Plastic push button latch
Connection Type	Hose Barb	Seal Material	Nitrile
Maximum Operating Temperature	180	Division	Quick Coupling Division
Connection Tube I.D. (inch)	3/8	Valve Style	Unvalved

Product resources

Literature and Reference Materials

Catalog 3800 Quick Coupling Products (PDF)
