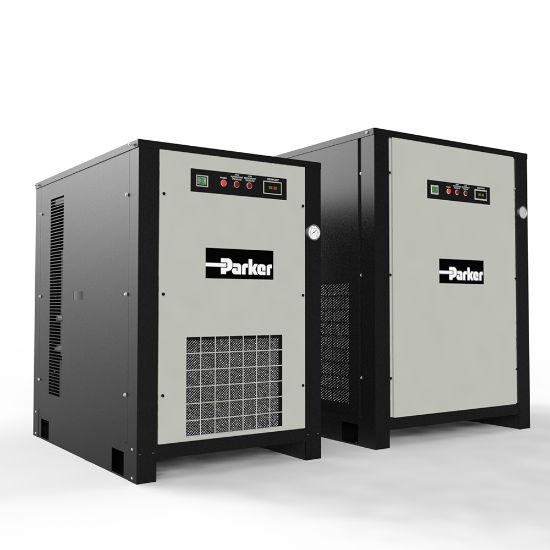

Picture of Parker PNC0325-A2-D2 - Non-Cycling Refrigerated Air Dryer - PNC Series

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker PNC0325-A2-D2 - Non-Cycling Refrigerated Air Dryer - PNC Series

Note: This product is no longer available - please refer to the PoleStar Smart-E (PSE) Series Cycling Refrigerated Compressed Air Dryers for current offering.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. PNC0325-A2-D2
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Maximum Ambient Temperature115Maximum Operating Temperature140
DivisionIndustrial Gas Filtration and Generation DivisionMinimum Operating Temperature41
Compatible PrefilterAOP040HNFIRefrigerant TypeR404A
Compatible After FilterAAP040HNFICompatible Prefilter ElementP040AO
Width28.4Weight432
Height42.1Maximum Operating Pressure200
Connection Type2" NPTBrandParker
Minimum Operating Pressure50Product TypeCompressed Air – Refrigerated
Minimum Ambient Temperature41Installed Condensate Drain TypeTimed Drain
Maximum Inlet Pressure Rating100Maximum Flow Rate552.18
Depth42.4Compatible After Filter ElementP040AA
Pre-Installed Optional AccessoriesDryer + Pre & After Filter (shipped loose)Maximum Flow Rate (cfm)325
Pressure Dew Point (F)≤ 44.6Electrical Requirements230V/1Ph/60Hz
