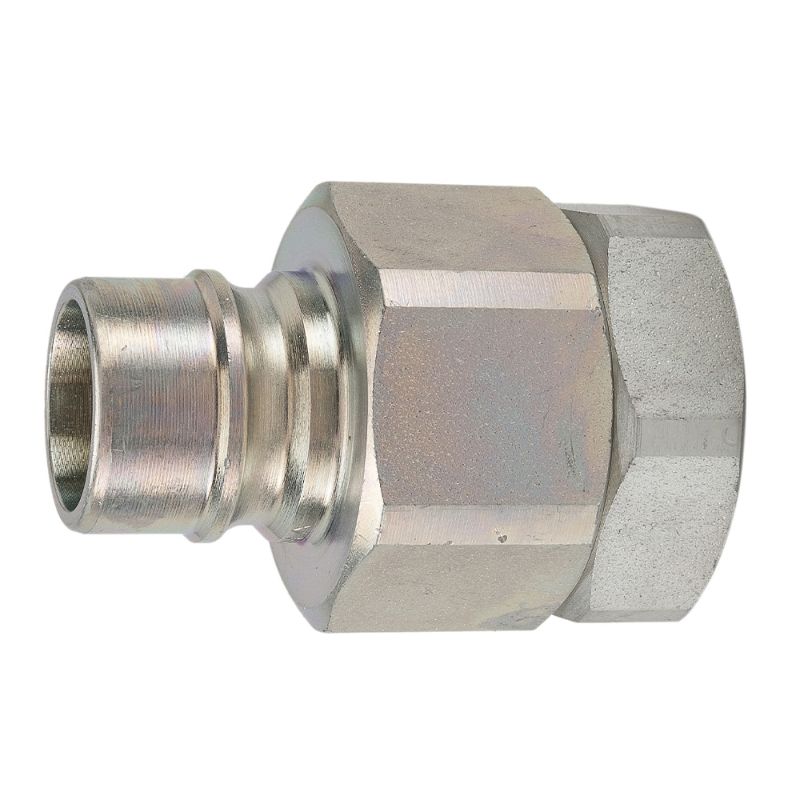

Parker PHN4-4F - General Purpose, Hydraulic Quick Couplings - H Series

General purpose, snap-tite design quick couplings for applications where fluid lines up to 4" require fast and easy connection and disconnection. Many sizes, ports and material options.

AFP Availability:	Quote Required
Partner Available:	91 In Stock

Brand Parker

Part No. PHN4-4F

$8.44/each

Products specifications

Attribute name	Attribute value
UOM	EA	Product Type	Manual Connect
Seal Material	Nitrile	Hex Size	0.63 inch
Body Material	Steel	Minimum Operating Temperature	-40 °F
Plating Type	Zinc with Clear Trivalent Chromate	Application	General Purpose
Maximum Operating Temperature	250 °F	Division	Quick Coupling Division
Valve Type	Unvalved	Dimensional Weight	0.015995203836930455 lb
Coupling Half	Male Nipple	Body Size (inch)	1/4
Maximum Operating Pressure	6500	Connection Thread Size (inch)	1/4 - 18
Body Material	Steel	Valve Type	Unvalved
Connection Type	Female NPTF
