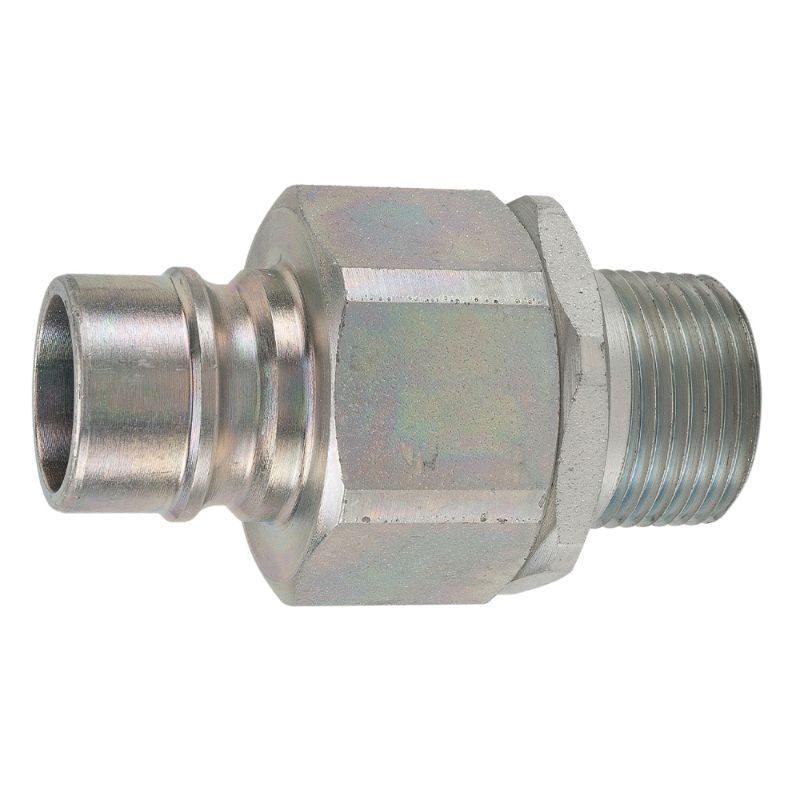

Parker PHN4-2M - General Purpose, Hydraulic Quick Couplings - H Series

General purpose, snap-tite design quick couplings for applications where fluid lines up to 4" require fast and easy connection and disconnection. Many sizes, ports and material options.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PHN4-2M

$10.90/each

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Temperature	250 °F
Hex Size	0.56 inch	Valve Type	Unvalved
Dimensional Weight	0.01335431654676259 lb	Division	Quick Coupling Division
Seal Material	Nitrile	Body Material	Steel
Application	General Purpose	Minimum Operating Temperature	-40 °F
Plating Type	Zinc with Clear Trivalent Chromate	Product Type	Manual Connect
Body Material	Steel	Connection Thread Size (inch)	1/8 - 27
Valve Type	Unvalved	Body Size (inch)	1/4
Connection Type	Male NPT	Coupling Half	Male Nipple
Maximum Operating Pressure	6500
