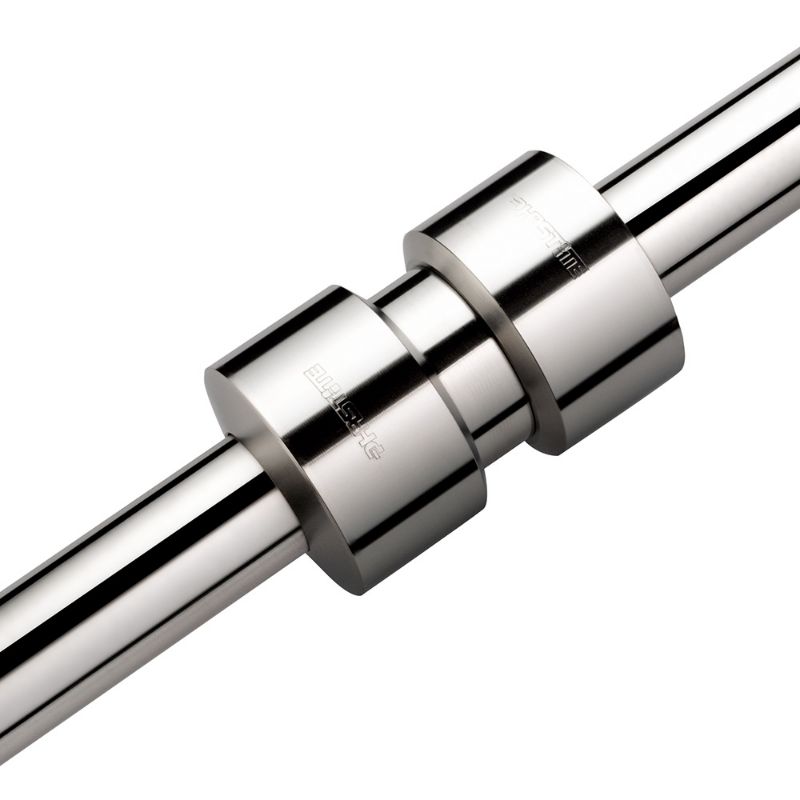

Parker PH-10-12N-TFS-SS - Permanent Ferrule Less Tube Fittings - Phastite® Series

Parker's Phastite® permanent compression fitting offers an extremely quick, easy and simple way of permanently connecting tube. When considering how much time it takes to weld tubing, Phastite® delivers a huge reduction in total installation cost.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PH-10-12N-TFS-SS

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-45	Shape	Straight Female Termination
Application	Hydraulic Power Unit	Connection 1 Size	5/8
Assembly Time	< 2 Minutes	Division	Instrumentation Products Division
Fitting Type	Ferruleless	Maximum Operating Temperature	93.0
Configuration	Tube to Pipe	Connection Type	Termination
Connection 2 Type	NPT Thread	Maximum Operating Pressure	22500
Tube Outside Diameter	25.0	Specifications Met	DNV
Materials of Construction	Stainless Steel	Connection 2 Size	3/4"-14
Materials of Construction	Stainless Steel	Connection 2 Size	3/4"-14 NPT
Connection 1 Size	5/8"	Configuration	Tube to Pipe
Product Style	Termination Female Straight
