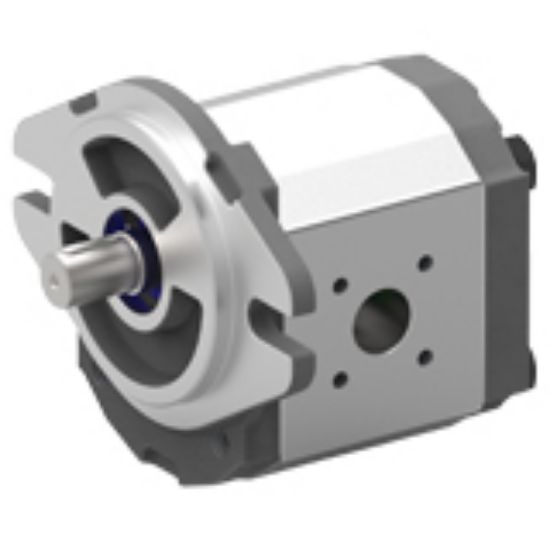

Parker PGP511H Series - Aluminum Pumps – PGP511H Series

Note: This product is no longer available - please contact us for further assistance.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PGP511H Series

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Circuit Path	Open	Maximum Fluid Temperature	158
Drain Option	No	Operating Pressure	up to 3626
Radial Load Capacity	n/a	Maximum Noise Level	63 dBA @2950 Rpm
Configuration	Single	Division	Pump & Motor Division
Maximum Operating Pressure	250	Minimum Kinematic Viscosity	15
Minimum Fluid Temperature	-40	Control Method	No
Maximum Kinematic Viscosity	150	For Fluid Type	Standard Hydraulic Fluids
Filter Included	No	Media	n/a
Maximum Displacement	28.3	Weight	n/a
Body Material	Aluminum	Port Connection	ODT
Displacement	up to 28.3	Maximum Flow Rate	n/a
Mounting Option	SAE	Flow Rate	n/a
Pump Type	Standard Hydraulic Fluids	Maximum Operating Speed	3000
Energy Recovery Capability	No	Displacement	Silent fixed displacement
