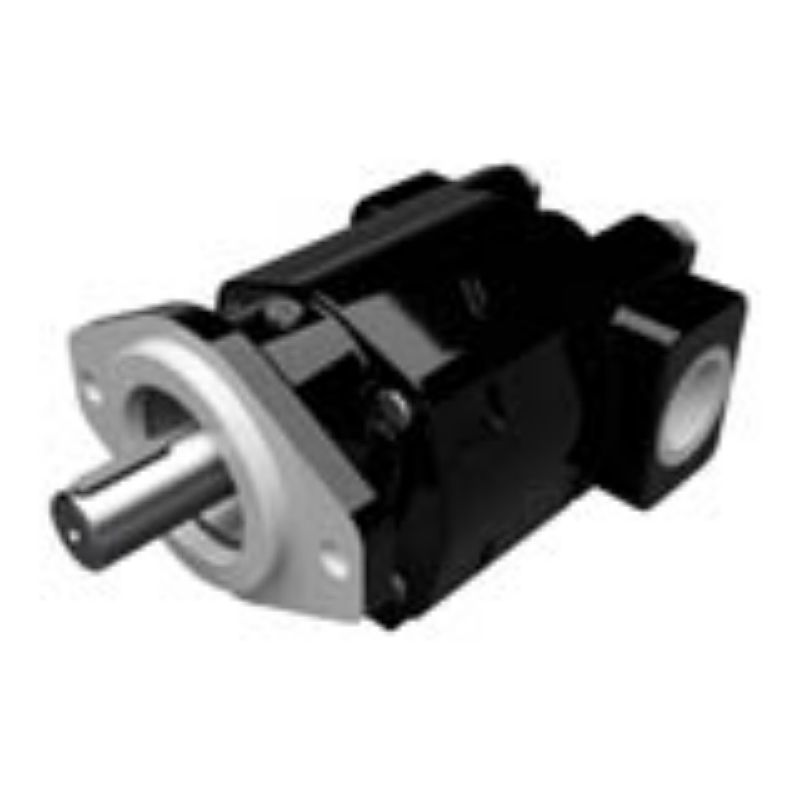

Parker PGP350 - Cast Iron Pumps – PGP350 Series

Parker’s PGP350 fixed displacement gear pumps offer high performance and high endurance due to its cast iron construction.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PGP350

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Body Material	Cast Iron	Mounting Type	4-Bolt SAE including "ZF" style"
Maximum Flow Rate	n/a	Shaft Type	SAE Splined or Keyed
Pump Type	Fixed	Continuous Outlet Pressure	3500.0
Maximum Displacement	6.4	Operating Speed	400 to 3000
Media	n/a	Displacement	up to 105
Filter Efficiency Rating	17/14 at 210 bar (3000 psi)	Direction of Rotation	Counterclockwise
Flow Rate	n/a	Maximum Inlet Pressure Rating	15
Radial Load Capacity	1125 lb with Outboard Bearings	Maximum Operating Pressure	3500
For Fluid Type	Fire Resistant fluids: water-oil emulsions 60/40 - HFB, water-glycol - HFC & phosphate-esters - HFD, Mineral oil	Operating Pressure	up to 3500
Weight	51 lb with 1" gear. Add 1 lb each additional 1/4" of gear.	Maximum Continuous Vacuum Pressure	5 inch-Hg at operating temperature.
Operating Temperature	0 to 150 °F w/FPM seals	Number of Ports	Metric Split Flange
Product Type	Pump with cast iron bushing, external gear	Division	Pump & Motor Division
Shaft Seal Material	FPM [FKM]	Length	varies by configuration
