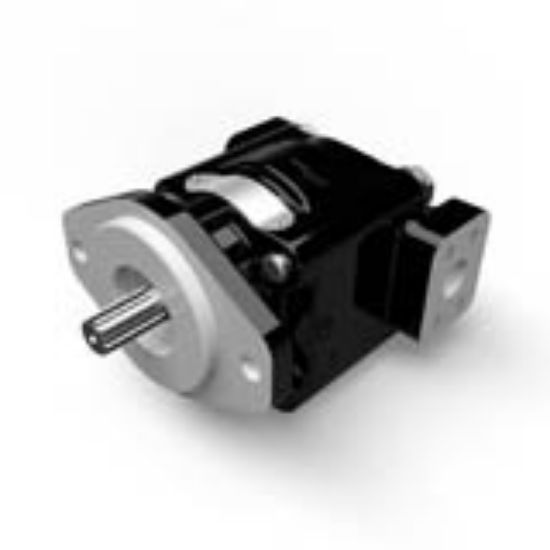

Parker PGP330 - Cast Iron Pumps – PGP330 Series

Parker’s PGP330 fixed displacement gear pumps offer high performance and high endurance due to its cast iron construction.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PGP330

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Fluid Temperature	80	Energy Recovery Capability	No
Flow Rate	n/a	Operating Pressure	up to 3500
Shaft Type	ISO	ConfiguratorModelID	PGP330
Control Method	Load Sense	Maximum Operating Speed	3000
Media	n/a	Weight	19
Port Location	Rear Ports	Charge Pump Included	No
Division	Pump & Motor Division	Drain Option	No
Port Type	Straight Threaded	Direction of Rotation	Counterclockwise
Configuration	Tandem	Pump Type	Gear
Thru-Drive Capability	No	Port Connection	ISO
Maximum Displacement	65	Displacement	up to 65
Filter Included	No	Mounting Option	ISO
Body Material	Cast Iron	Radial Load Capacity	356
Sensor Type	n/a	Minimum Kinematic Viscosity	50
Circuit Path	Open	Maximum Operating Pressure	241
For Fluid Type	Phosphate-ester	ConfiguratorType	Algroeconfigurator
Maximum Kinematic Viscosity	7500	Maximum Noise Level	n/a
Maximum Flow Rate	n/a	Minimum Fluid Temperature	-20
Length	varies by configuration
