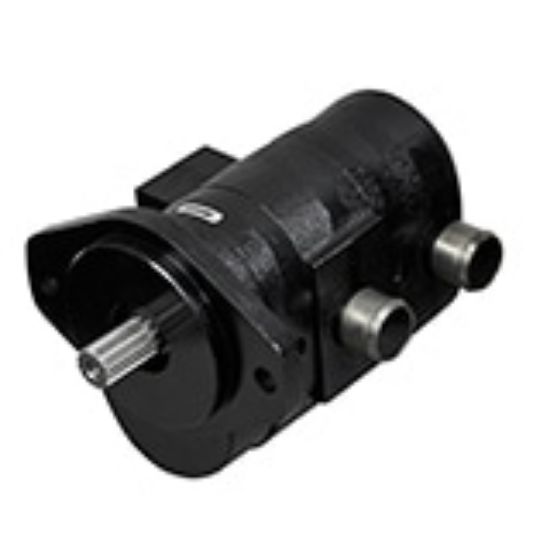

Parker PGP130 - PGP130 Series

Parker’s PGP130 fixed displacement gear pumps offer high performance and high endurance due to its cast iron construction.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PGP130

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Displacement	up to 51	Media	Hydraulic Fluids
Maximum Displacement	51	Shaft Type	SAE
Mounting Option	SAE	Port Location	Side Ports
Port Connection	ODT	Flow Rate	n/a
Direction of Rotation	Counterclockwise	Pump Type	Gear
Thru-Drive Capability	No	Maximum Fluid Temperature	80
Energy Recovery Capability	No	Maximum Kinematic Viscosity	1200
Circuit Path	Open	Operating Pressure	up to 4351
Sensor Type	n/a	Maximum Operating Speed	3,400
Configuration	Tandem	Charge Pump Included	No
Drain Option	Yes	Division	Pump & Motor Division
Port Type	Straight Threaded	Maximum Noise Level	n/a
Maximum Flow Rate	26	Minimum Kinematic Viscosity	10
Minimum Fluid Temperature	-20	Body Material	Cast Iron
For Fluid Type	Standard Hydraulic Fluids	Radial Load Capacity	Consult Parker
Maximum Operating Pressure	300	Filter Included	No

Product resources

Literature and Reference Materials
