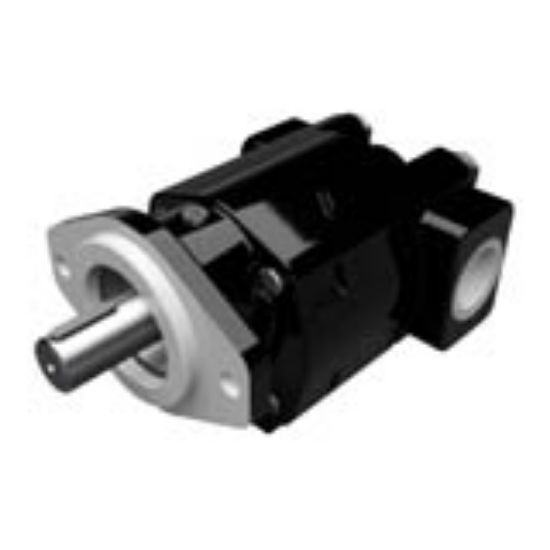

Parker PGM350 - Cast Iron Motors – PGM350 Series

Parker’s PGM350 fixed displacement gear motors offers high performance and high endurance due to its cast iron construction.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PGM350

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Direction of Rotation	Bi-Directional	Maximum Continuous Vacuum Pressure	13 cm (5 in) Hg at operating temperature
Weight	51 lb with 1" Gear (add 1 lb each additional 1/4" of gear)	Displacement	20.9 to 104.5 cm3/rev (Motor)
Number of Ports	BSPP	Product Type	Motor, cast iron bushing, external gear
Operating Temperature	0 to 180 °F with standard seals	Shaft Type	SAE Splined
Mounting Type	SAE 2-Bolt or 4-Bolt	Continuous Outlet Pressure	up to 241
Operating Speed	400 to 3000	Filter Efficiency Rating	According to ISO 4406: 19/16 at 140 bar (2000 psi), 17/14 at 210 bar (3000 psi), 15/12 at 275 bar (4000 psi)
Division	Pump & Motor Division	Maximum Inlet Pressure Rating	15
Shaft Seal Material	NBR	For Fluid Type	Fire Resistant Fluids : Water-Oil Emulsions 60/40, HFB; Water-Glycol, HFC; Phosphate Esters, HFD
Length	varies by configuration
