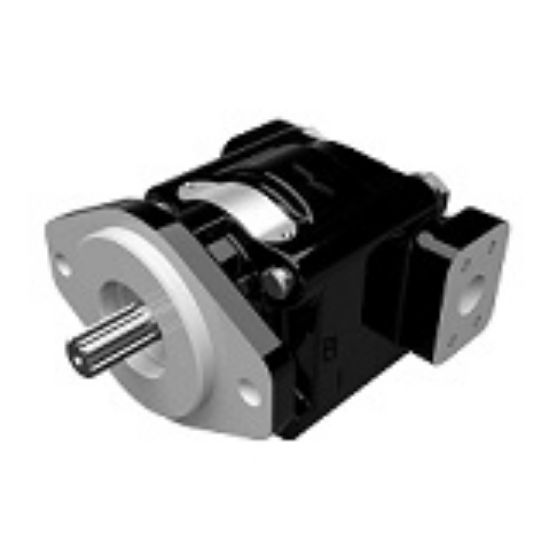

Parker PGM330 - Cast Iron Motors – PGM330 Series

Parker’s PGM330 fixed displacement gear motors offers high performance and high endurance due to its cast iron construction.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PGM330

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Inlet Pressure Rating	15	Mounting Type	SAE 2-Bolt or 4-Bolt
Weight	36 lb with 1" Gear (add 1 lb each additional 1/4" of gear. Subtract 10% from total.)	Shaft Seal Material	NBR
For Fluid Type	Fire Resistant Fluids : Water-Oil Emulsions 60/40, HFB; Water-Glycol, HFC; Phosphate Esters, HFD	Division	Pump & Motor Division
Product Type	Motor, cast iron bushing, external gear	Number of Ports	BSPP
Operating Temperature	0 to 180 °F with standard seals	Filter Efficiency Rating	According to ISO 4406: 19/16 at 140 bar (2000 psi), 17/14 at 210 bar (3000 psi), 15/12 at 275 bar (4000 psi)
Shaft Type	SAE Splined	Displacement	16.1 to 64.6 cm3/rev (Motor)
Operating Speed	400 to 3000	Direction of Rotation	Bi-Directional
Maximum Continuous Vacuum Pressure	13 cm (5 in) Hg at operating temperature	Continuous Outlet Pressure	up to 241
Length	varies by configuration
