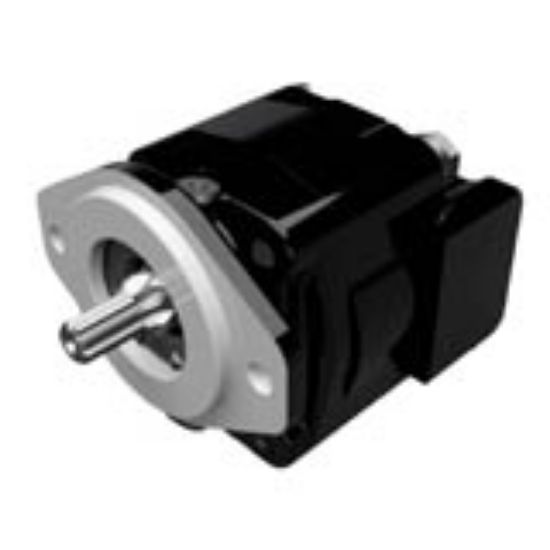

Parker PGM315 - Cast Iron Motors – PGM315 Series

Parker’s PGM315 fixed displacement gear motors offers high performance and high endurance due to its cast iron construction.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PGM315

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Operating Temperature	0 to 180 °F with standard seals	Product Type	Motor, cast iron bushing, external gear
Number of Ports	BSPP	Shaft Seal Material	NBR
Filter Efficiency Rating	According to ISO 4406: 19/16 at 140 bar (2000 psi), 17/14 at 210 bar (3000 psi), 15/12 at 275 bar (4000 psi)	Maximum Continuous Vacuum Pressure	13 cm (5 in) Hg at operating temperature
Continuous Outlet Pressure	up to 241	Direction of Rotation	Bi-Directional
Maximum Inlet Pressure Rating	15	Mounting Type	SAE 2-Bolt or 4-Bolt
Operating Speed	400 to 3000	Shaft Type	SAE Splined
For Fluid Type	Fire Resistant Fluids : Water-Oil Emulsions 60/40, HFB; Water-Glycol, HFC; Phosphate Esters, HFD	Weight	18 lb with 1" Gear
Drain Option	Top	Division	Pump & Motor Division
Displacement	7.6 to 40.6 cm3/rev (Motor)	Length	varies by configuration
