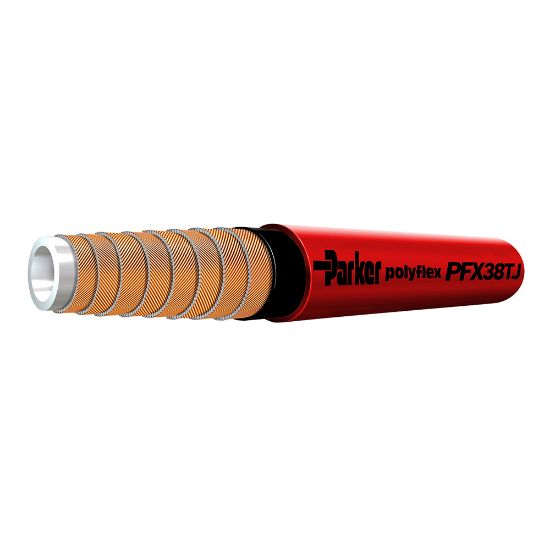

Picture of Parker PFX38-05TJ - PFX38-05 UHP Hose - 55,000 psi

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker PFX38-05TJ - PFX38-05 UHP Hose - 55,000 psi

Parker Ultra High Pressure PFX38-05 hose is an 8mm, 55,000 psi ultra high pressure water jet cutting equipment with water or with abrasive additives.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. PFX38-05TJ
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Inside Diameter5/16Maximum Operating Pressure55000
Minimum Bend Radius11MediaWater
Outside Diameter0.964Maximum Operating Temperature158
Hose Cover TypeToughJACKET™Hose Reinforcement Material8 Spirals of Maximum Tensile Steel Wire
Hose Inner Tube MaterialPolyoxymethylene (POM)Compatible Fitting2X Series
Specifications MetISO 23384DivisionParflex Division
Cover ColorRedCover MaterialPolyurethane
Weight0.96Minimum Operating Temperature14
ApplicationHydrodemolitionDesign Factor2.1:1
Size-5CoverTOUGHJACKET Polyurethane
