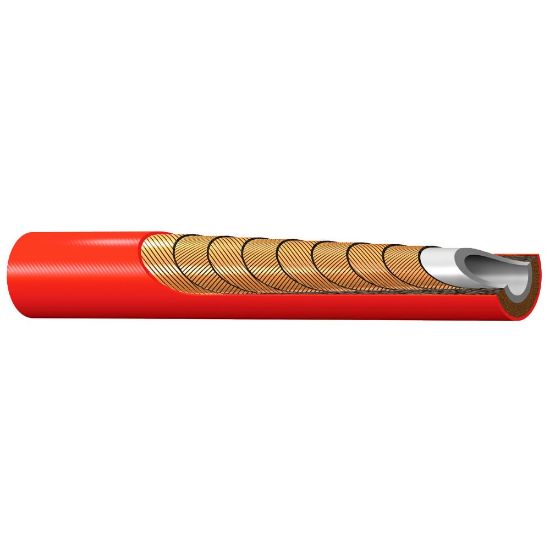

Picture of Parker PFX38-05 - PFX38-05 UHP Hose - 55,000 psi

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker PFX38-05 - PFX38-05 UHP Hose - 55,000 psi

Parker Ultra High Pressure PFX38-05 hose is an 8mm, 55,000 psi ultra high pressure water jet cutting equipment with water or with abrasive additives.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. PFX38-05
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Cover ColorRedHose Inner Tube MaterialPolyoxymethylene (POM)
Inside Diameter5/16 inchMinimum Operating Temperature-10 °C
Hose Reinforcement Material8 Spirals of Maximum Tensile Steel WireDesign Factor2.1:1
Minimum Bend Radius280 mmProduct StyleSingle Line
Size-5Maximum Operating Temperature158 °F
Weight0.85 lb/ftOutside Diameter0.807 inch
MediaChemicalsDivisionParflex Division
ApplicationWaterblastingMaximum Operating Pressure3800 bar
Cover MaterialPolyurethaneCompatible Fitting2X Series
Specifications MetDIN 1829-2CoverPolyurethane
