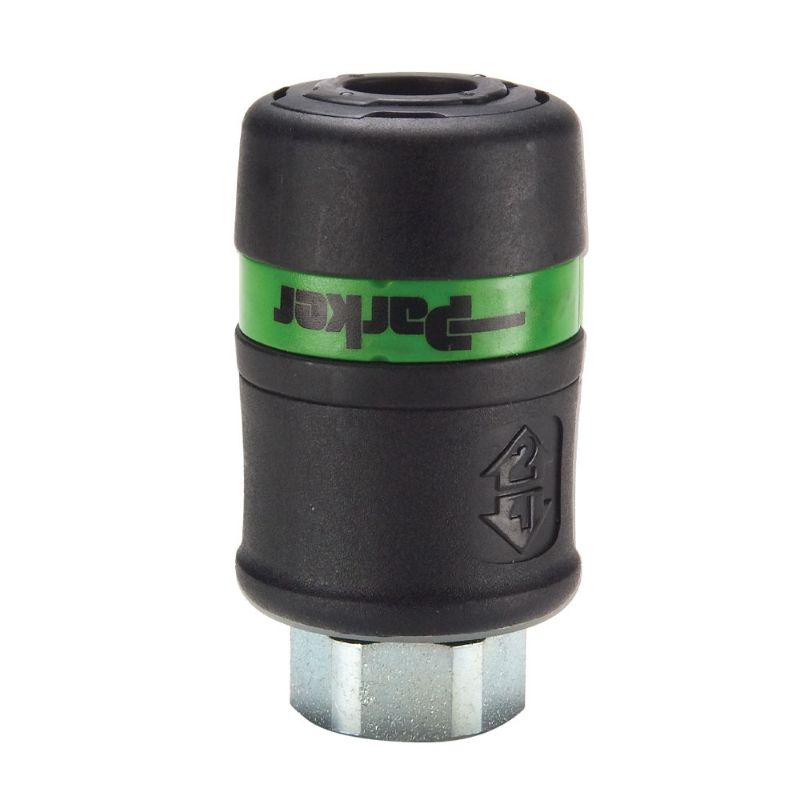

Parker PES-251-4FP - ISO 4414 Industrial & European Interchange, Safety Quick Connect Air Couplers - Tool-Mate Exhaust Series

Name: Parker PES-251-4FP - ISO 4414 Industrial & European Interchange, Safety Quick Connect Air Couplers - Tool-Mate Exhaust Series
SKU: PES-251-4FP
Price: 56.62 USD
Availability: InStock

Parker's pressure venting pneumatic, air quick connect couplers are ideal for use in applications where low pressure air lines require fast and easy connection and disconnection with a controlled pressure release system.

AFP Availability:

2 Limited Stock

Sumter, SC

Partner Available:

35 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. PES-251-4FP

$56.62/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Coupling Half	Coupler
Maximum Operating Pressure	300 psi	Valve Type	Tubular
Application	Air	Plating Type	Galvanized Steel Port Ends
Specifications Met	ISO 4414 controlled pressure release	Seal Material	Nitrile
Special Option	Exhaust - Venting	Body Material	Polyamide
Lock Type	Polyacetate Locking Fingers	Minimum Operating Temperature	0 °F
Sleeve Type	Push-to-Connect	Division	Quick Coupling Division
Media	Compressed Air	Maximum Operating Temperature	160 °F
Connection Type	Female, NPTF	Thread Style	Female
Body Size	1/4"	Connection Thread Size	1/4"-18
Interface Option	Connects with pneumatic Industrial Interchange nipples A-A-59439 (MIL-C-4109F, ISO 6150-B)

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
