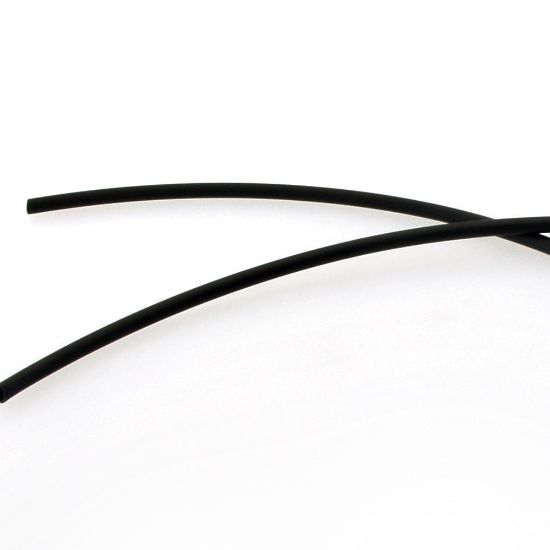

Picture of Parker PEFR-4-040-BLK-0500 - PE Tubing - Flame Resistant

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker PEFR-4-040-BLK-0500 - PE Tubing - Flame Resistant

Spark resistant PEFR Series PE Tubing is flame resistant (UL 94 V-2) and excellent for pneumatic controls in HVAC applications. Resistant to stress cracking exceeds that of ordinary polyethylene tubing.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. PEFR-4-040-BLK-0500
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Cover Materialn/aTube MaterialPolyethylene (PE) (Flame Resistant)
Size-4ApplicationFluid Handling
Tube Outside Diameter6.4 mmMinimum Operating Temperature-85 °F
Minimum Bend Radius3/4 inchMaximum Operating Temperature66 °C
Compatible FittingCompressionColorBlack
Minimum Burst Pressure38.6 barMaximum Operating Pressure0.97 MPa
Specifications MetASTM D1693Tube Inside Diameter4.3 mm
DivisionParflex DivisionWeight0.012 lb/ft
Length per Package152 mMediaAir
Tube O.D. (inch)1/4Standard Pack Qty (ft)500
