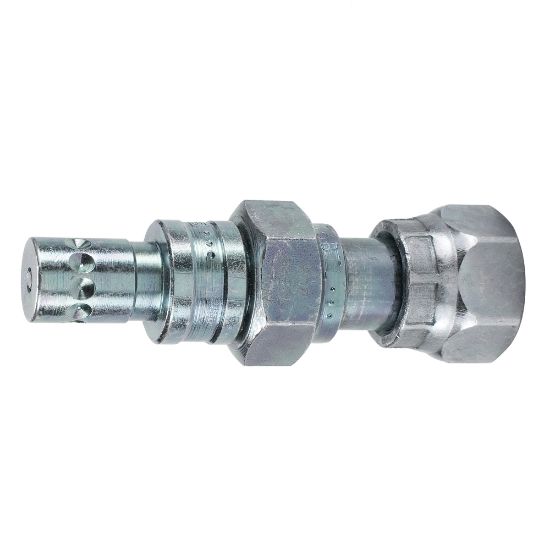

Parker PDP36BTL - Connect Under Pressure, Test Port, Diagnostic Quick Couplings - PDP Series

Parker's diagnostic quick couplers and test point nipples provide easy connections for mechanical gauges or specialized diagnostic equipment including Parker's SensoControl meters and accessories.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PDP36BTL

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Valve Type	Ball	Product Type	Push to Connect
Plating Type	Zinc with clear trivalent chromate	Seal Material	Nitrile
Body Material	Steel	Maximum Operating Temperature	250 °F
Maximum Operating Pressure	6000 psi	Application	Diagnostic
Hex Size	0.81 inch	Body Size	1/8 inch
Minimum Operating Temperature	-40 °F	Division	Quick Coupling Division
Tube Size (inch)	3/8	Connection Type	Seal-Lok
Connection Thread Size (inch)	na	Coupling Half	Male Nipple
