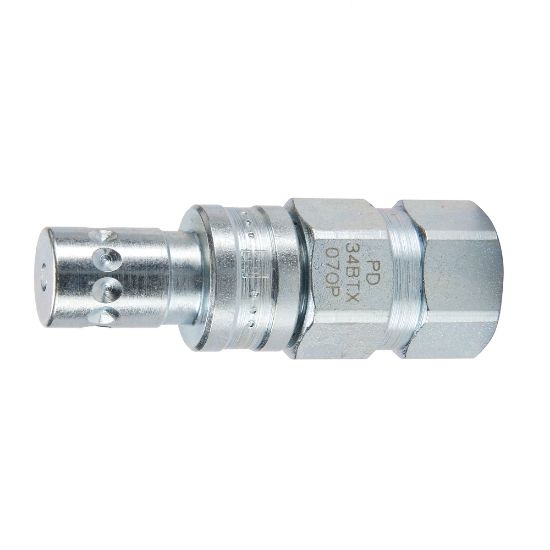

Parker PDP34BTX - Connect Under Pressure, Test Port, Diagnostic Quick Couplings - PDP Series

Parker's diagnostic quick couplers and test point nipples provide easy connections for mechanical gauges or specialized diagnostic equipment including Parker's SensoControl meters and accessories.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PDP34BTX

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	6000 psi	Application	Diagnostic
Valve Type	Ball	Hex Size	0.69 inch
Body Material	Steel	Maximum Operating Temperature	250 °F
Plating Type	Zinc with clear trivalent chromate	Product Type	Push to Connect
Seal Material	Nitrile	Division	Quick Coupling Division
Minimum Operating Temperature	-40 °F	Body Size	1/8 inch
Connection Thread Size (inch)	na	Connection Type	Triple-Lok
Tube Size (inch)	1/4	Coupling Half	Male Nipple
