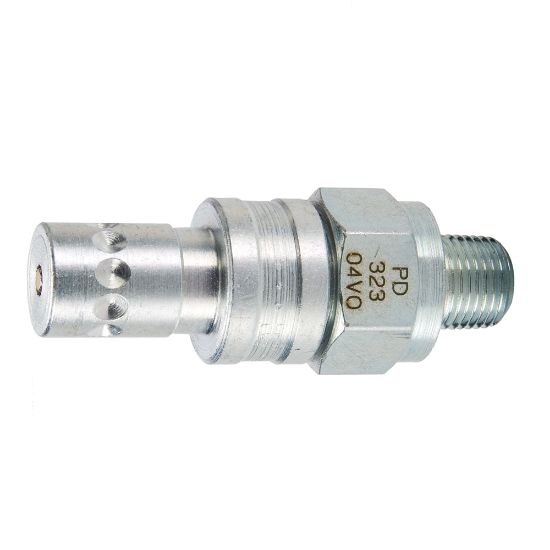

Parker PDP343-6 - Connect Under Pressure, Test Port, Diagnostic Quick Couplings - PDP Series

Parker's diagnostic quick couplers and test point nipples provide easy connections for mechanical gauges or specialized diagnostic equipment including Parker's SensoControl meters and accessories.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PDP343-6

$89.32

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Hex Size	0.79 inch
Division	Quick Coupling Division	Application	Diagnostics
Minimum Operating Temperature	-40 °F	Valve Type	Ball
Seal Material	Nitrile	Product Type	Push to Connect
Maximum Operating Pressure	6000 psi	Body Size	1/8 inch
Body Material	Steel	Plating Type	Zinc with clear trivalent chromate
Maximum Operating Temperature	250 °F	Coupling Half	Male Nipple
Connection Thread Size (inch)	1/4 - 18	Tube Size (inch)	na
Connection Type	Male NPTF
