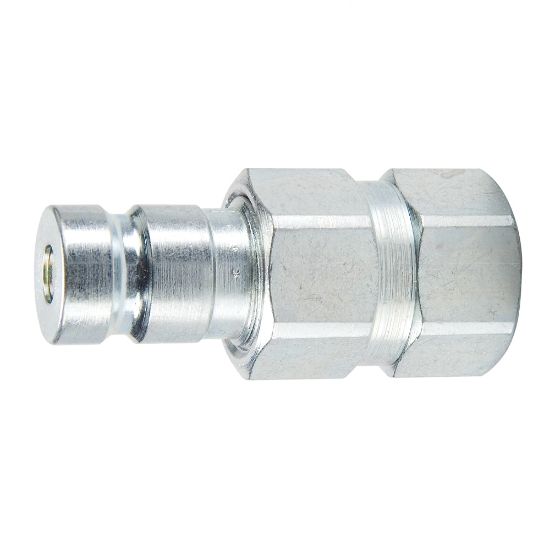

Parker PD36BTX - Test Port, Diagnostic Quick Couplings, ISO 15171-1 - PD Series

Parker's diagnostic quick couplers and test point nipples provide easy connections for mechanical gauges or specialized diagnostic equipment including Parker's SensoControl meters and accessories.

Availability:	Quote Required
Partner Available:	290 In Stock

Brand Parker

Part No. PD36BTX

$25.68

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Plating Type	Zinc with clear trivalent chromate
Maximum Operating Temperature	250 °F	Body Material	Steel
Seal Material	Nitrile	Product Type	Push to Connect
Valve Type	Non-spill	Division	Quick Coupling Division
Application	Diagnostics	Specifications Met	SAE J1502
Minimum Operating Temperature	-40 °F	Body Size	1/8 inch
Hex Size	n/a inch	Dimensional Weight	0.01335431654676259 lb
Flow Rate	0.8 Gal/min	Maximum Operating Pressure	6000 psi
Connection Thread Size (inch)	na	Connection Type	Triple-Lok
Coupling Half	Male Nipple	Tube Size (inch)	3/8
