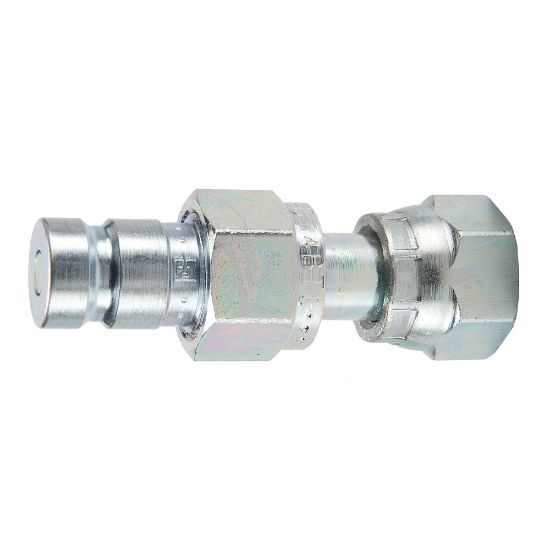

Parker PD36BTL-6 - Test Port, Diagnostic Quick Couplings, ISO 15171-1 - PD Series

Parker's diagnostic quick couplers and test point nipples provide easy connections for mechanical gauges or specialized diagnostic equipment including Parker's SensoControl meters and accessories.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PD36BTL-6

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Specifications Met	SAE J1502 / ISO 15171-1	Hex Size	na inch
Division	Quick Coupling Division	Flow Rate	0.8 Gal/min
Plating Type	Zinc with clear trivalent chromate	Body Material	Steel
Product Type	Push to Connect	Seal Material	Nitrile
Maximum Operating Temperature	250 °F	Application	Diagnostic
Valve Type	Non-spill	Maximum Operating Pressure	6000 psi
Body Size	1/8 inch	Minimum Operating Temperature	-40 °F
Coupling Half	Male Nipple	Tube Size (inch)	3/8
Connection Type	Seal-Lok	Connection Thread Size (inch)	na
