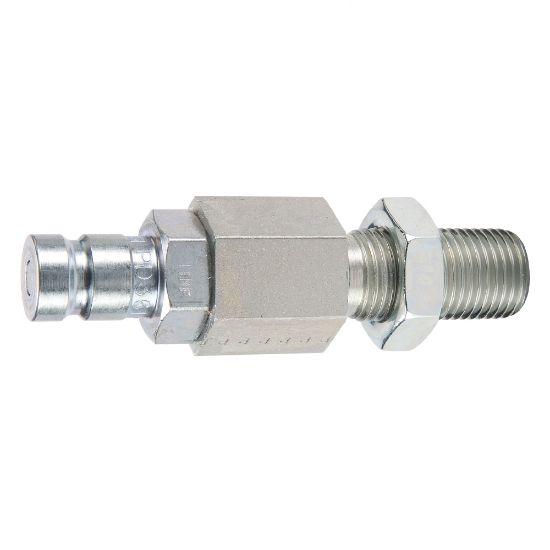

Parker PD366 - Test Port, Diagnostic Quick Couplings, ISO 15171-1 - PD Series

Parker's diagnostic quick couplers and test point nipples provide easy connections for mechanical gauges or specialized diagnostic equipment including Parker's SensoControl meters and accessories.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PD366

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-40	Body Size	1/8
Hex Size	1.00	Specifications Met	SAE J1502 / ISO 15171-1
Valve Type	Non-spill	Application	Diagnostic
Maximum Operating Pressure	6000	Plating Type	Zinc with clear trivalent chromate
Body Material	Steel	Product Type	Push to Connect
Seal Material	Nitrile	Division	Quick Coupling Division
Flow Rate	0.8	Maximum Operating Temperature	250
Tube Size (inch)	3/8	Connection Type	Male bulkhead Seal-Lok
Coupling Half	Male Nipple	Connection Thread Size (inch)	11/16 - 16 UNF
