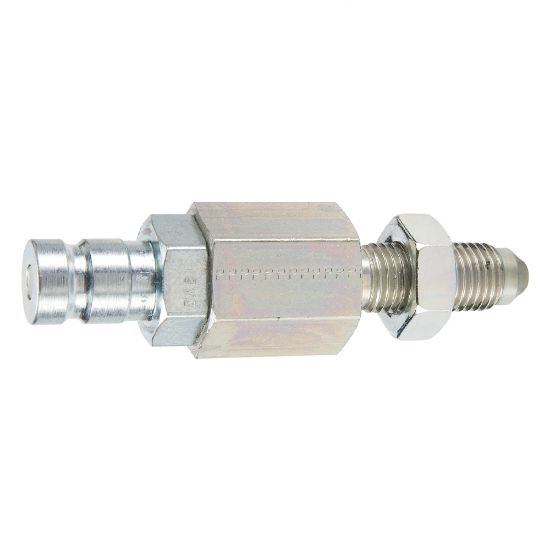

Parker PD365 - Test Port, Diagnostic Quick Couplings, ISO 15171-1 - PD Series

Parker's diagnostic quick couplers and test point nipples provide easy connections for mechanical gauges or specialized diagnostic equipment including Parker's SensoControl meters and accessories.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PD365

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Body Material	Steel	Product Type	Push to Connect
Plating Type	Zinc with clear trivalent chromate	Maximum Operating Temperature	250 °F
Valve Type	Non-spill	Application	Diagnostic
Seal Material	Nitrile	Maximum Operating Pressure	6000 psi
Hex Size	0.81 inch	Division	Quick Coupling Division
Minimum Operating Temperature	-40 °F	Body Size	1/8 inch
Specifications Met	SAE J1502 / ISO 15171-1	Flow Rate	0.8 Gal/min
Connection Thread Size (inch)	9/16 - 18 UNF	Connection Type	Male bulkhead Triple-Lok
Coupling Half	Male Nipple	Tube Size (inch)	3/8
