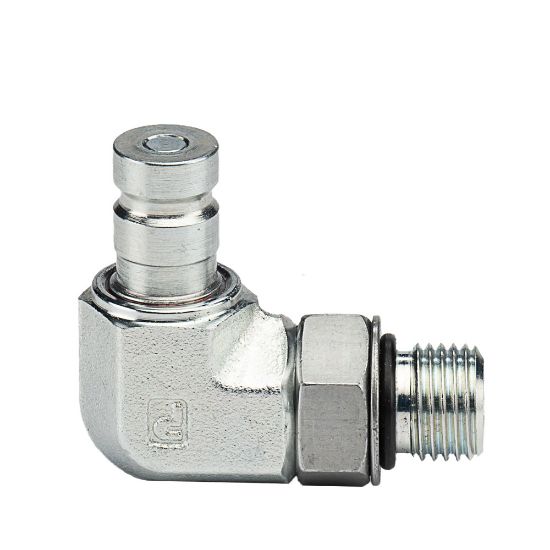

Parker PD361-90 - Test Port, Diagnostic Quick Couplings, ISO 15171-1 - PD Series

Parker's diagnostic quick couplers and test point nipples provide easy connections for mechanical gauges or specialized diagnostic equipment including Parker's SensoControl meters and accessories.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PD361-90

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Hex Size	0.69 inch	Plating Type	Zinc with clear trivalent chromate
Seal Material	Nitrile	Product Type	Push to Connect
Maximum Operating Temperature	250 °F	Body Material	Steel
Division	Quick Coupling Division	Minimum Operating Temperature	-40 °F
Body Size	1/8 inch	Flow Rate	0.8 Gal/min
Specifications Met	SAE J1502 / ISO 15171-1	Application	Diagnostic
Valve Type	Non-spill	Maximum Operating Pressure	6000 psi
Connection Thread Size (inch)	9/16 - 18	Tube Size (inch)	na
Coupling Half	Male Nipple	Connection Type	Male UNF
