*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

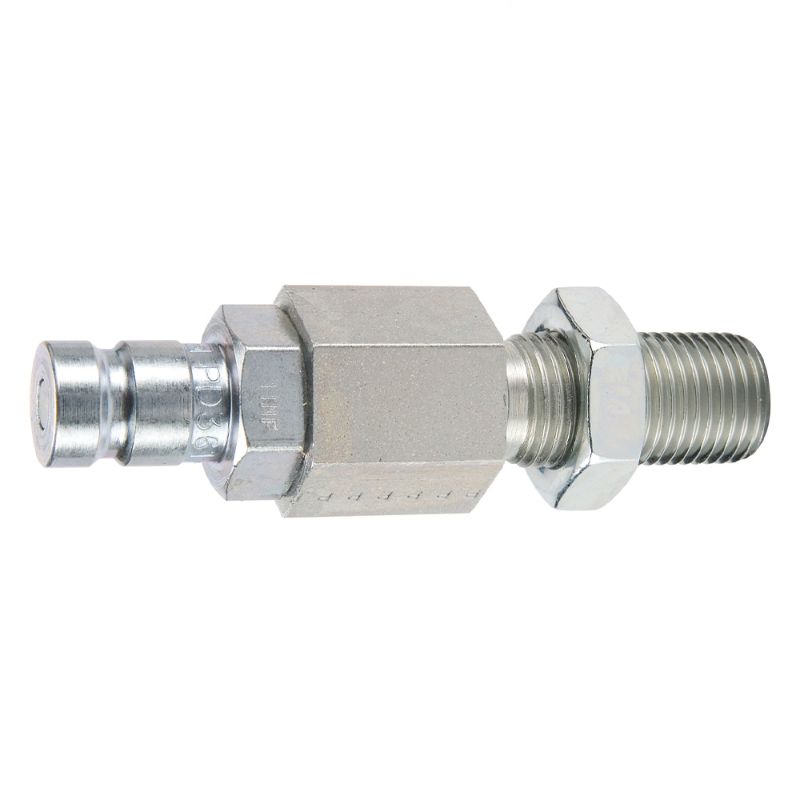

Parker PD346 - Test Port, Diagnostic Quick Couplings, ISO 15171-1 - PD Series

Parker's diagnostic quick couplers and test point nipples provide easy connections for mechanical gauges or specialized diagnostic equipment including Parker's SensoControl meters and accessories.

AFP Availability:	Quote Required
Partner Available:	96 In Stock

Brand Parker

Part No. PD346

$42.49/each

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	Steel
Hex Size	0.81 inch	Valve Type	Non-spill
Maximum Operating Temperature	250 °F	Division	Quick Coupling Division
Body Size	1/8 inch	Seal Material	Nitrile
Maximum Operating Pressure	6000 psi	Product Type	Push to connect
Minimum Operating Temperature	-40 °F	Plating Type	Zinc with clear trivalent chromate
Application	Diagnostic	Flow Rate	0.8 Gal/min
Specifications Met	SAE J1502 / ISO 15171-1	Tube Size (inch)	1/4
Connection Type	Male bulkhead Seal-Lok	Connection Thread Size (inch)	9/16 - 18 UNF
Coupling Half	Male Nipple

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
