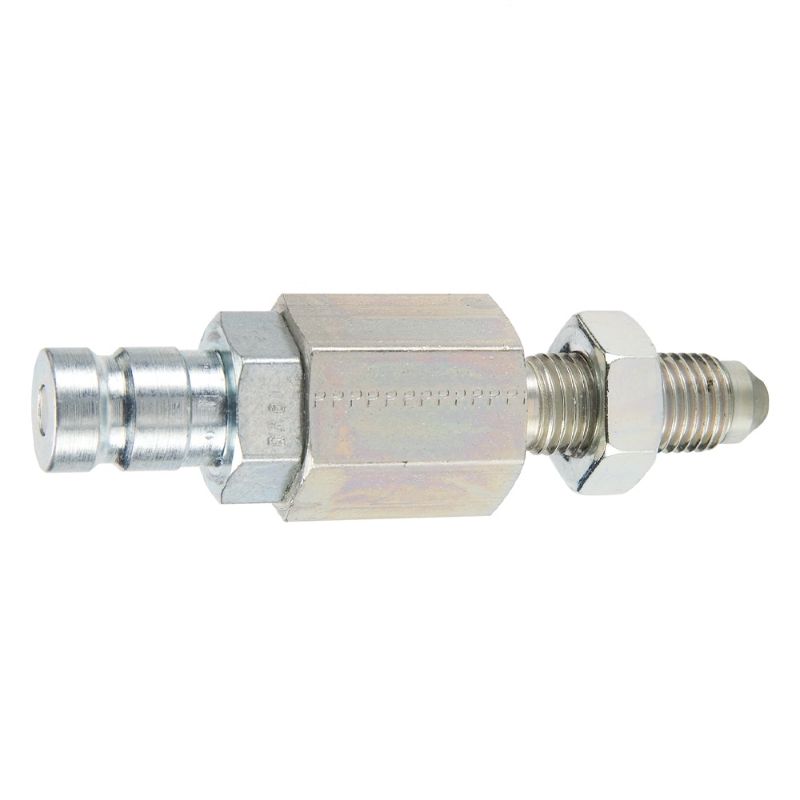

Parker PD345 - Test Port, Diagnostic Quick Couplings, ISO 15171-1 - PD Series

Parker's diagnostic quick couplers and test point nipples provide easy connections for mechanical gauges or specialized diagnostic equipment including Parker's SensoControl meters and accessories.

Availability:	Quote Required
Partner Available:	8 In Stock

Brand Parker

Part No. PD345

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Hex Size	0.81 inch
Body Size	1/8 inch	Body Material	Steel
Maximum Operating Temperature	250 °F	Plating Type	Zinc with clear trivalent chromate
Division	Quick Coupling Division	Minimum Operating Temperature	-40 °F
Flow Rate	0.8 Gal/min	Specifications Met	SAE J1502 / ISO 15171-1
Valve Type	Non-spill	Application	Diagnostic
Product Type	Push to Connect	Seal Material	Nitrile
Maximum Operating Pressure	6000 psi	Connection Type	Male bulkhead Triple-Lok
Coupling Half	Male Nipple	Connection Thread Size (inch)	7/16 - 20 UNF
Tube Size (inch)	1/4
