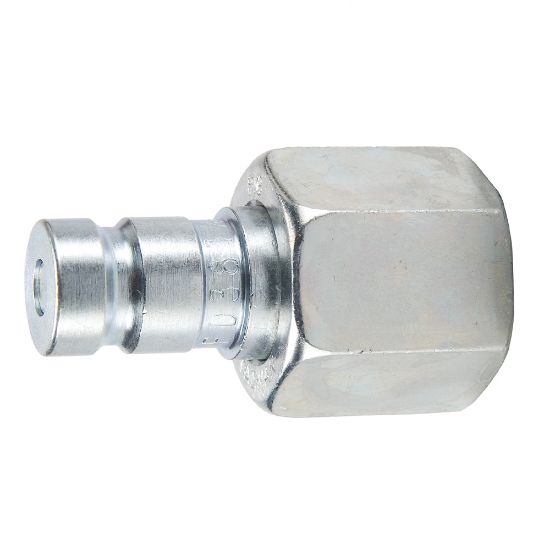

Parker PD312BTX - Test Port, Diagnostic Quick Couplings, ISO 15171-1 - PD Series

Parker's diagnostic quick couplers and test point nipples provide easy connections for mechanical gauges or specialized diagnostic equipment including Parker's SensoControl meters and accessories.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PD312BTX

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Specifications Met	SAE J1502 / ISO 15171-1	Hex Size	na inch
Division	Quick Coupling Division	Flow Rate	0.8 Gal/min
Maximum Operating Temperature	250 °F	Body Material	Steel
Plating Type	Zinc with clear trivalent chromate	Product Type	Push to Connect
Seal Material	Nitrile	Maximum Operating Pressure	6000 psi
Application	Diagnostic	Valve Type	Non-spill
Minimum Operating Temperature	-40 °F	Body Size	1/8 inch
Coupling Half	Male Nipple	Connection Type	Triple-Lok
Connection Thread Size (inch)	na	Tube Size (inch)	3/4

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
