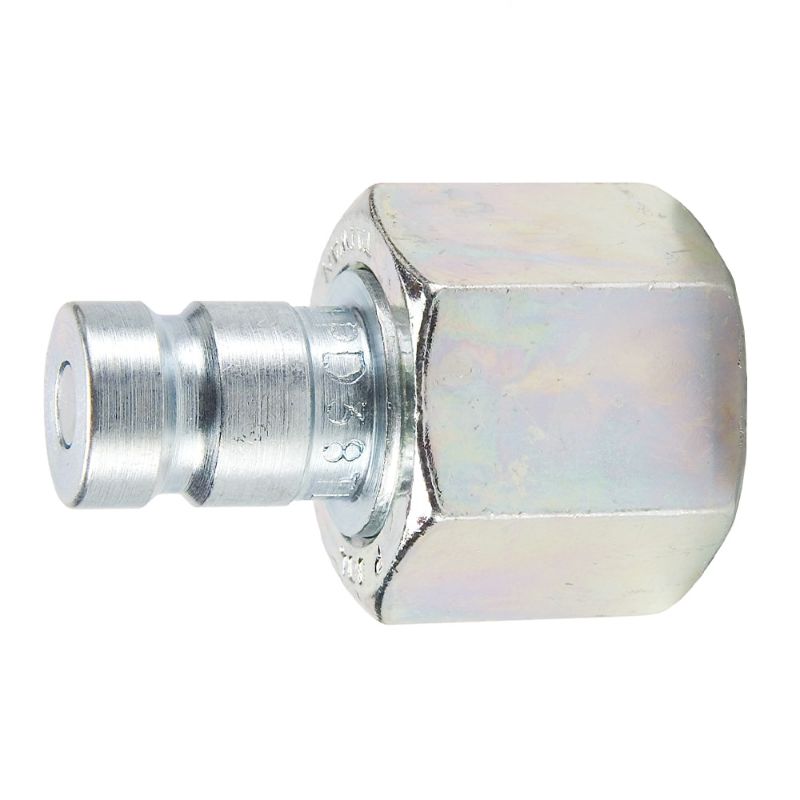

Parker PD310BTL - Test Port, Diagnostic Quick Couplings, ISO 15171-1 - PD Series

Parker's diagnostic quick couplers and test point nipples provide easy connections for mechanical gauges or specialized diagnostic equipment including Parker's SensoControl meters and accessories.

Availability:	Quote Required
Partner Available:	12 In Stock

Brand Parker

Part No. PD310BTL

$29.56

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	Steel
Maximum Operating Temperature	250 °F	Plating Type	Zinc with clear trivalent chromate
Specifications Met	ISO 15171-1	Seal Material	Nitrile
Product Type	Push to Connect	Maximum Operating Pressure	6000 psi
Valve Type	Non-spill	Minimum Operating Temperature	-40 °F
Body Size	1/8 inch	Application	Diagnostics
Dimensional Weight	0.062320143884892085 lb	Hex Size	n/a inch
Flow Rate	0.8 Gal/min	Division	Quick Coupling Division
Connection Type	Seal-Lok	Connection Thread Size (inch)	na
Coupling Half	Male Nipple	Tube Size (inch)	5/8
