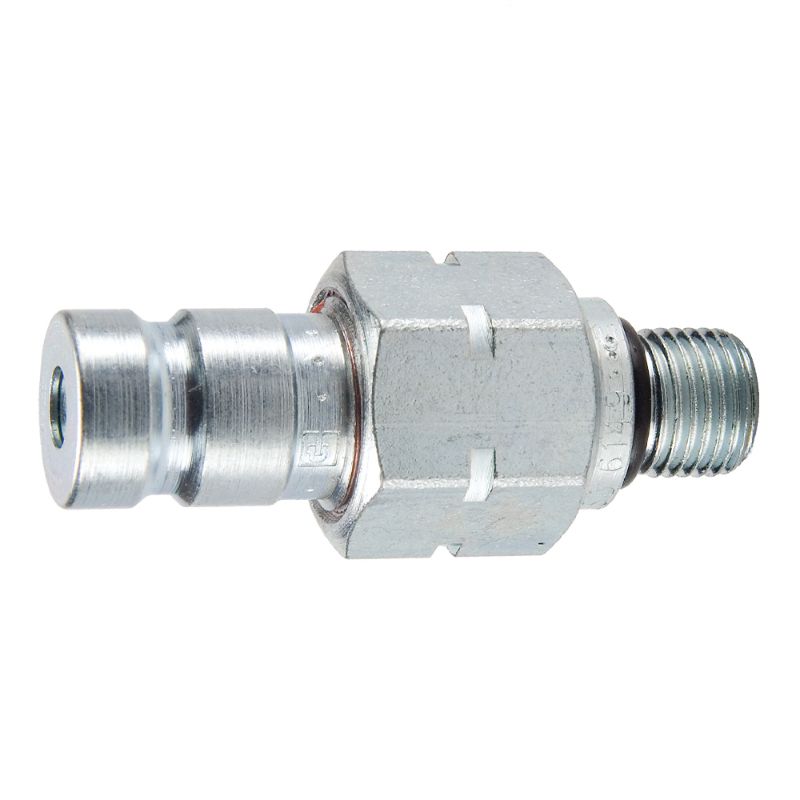

Parker PD3107 - Test Port, Diagnostic Quick Couplings, ISO 15171-1 - PD Series

Parker's diagnostic quick couplers and test point nipples provide easy connections for mechanical gauges or specialized diagnostic equipment including Parker's SensoControl meters and accessories.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PD3107

$5.72

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Body Size	1/8 inch
Hex Size	0.88 inch	Plating Type	Zinc with clear trivalent chromate
Maximum Operating Temperature	250 °F	Body Material	Steel
Minimum Operating Temperature	-40 °F	Division	Quick Coupling Division
Specifications Met	SAE J1502 / ISO 15171-1	Flow Rate	0.8 Gal/min
Product Type	Push to Connect	Seal Material	Nitrile
Valve Type	Non-spill	Application	Diagnostic
Maximum Operating Pressure	6000 psi	Tube Size (inch)	na
Coupling Half	Male Nipple	Connection Thread Size (inch)	na
Connection Type	Male Metric
