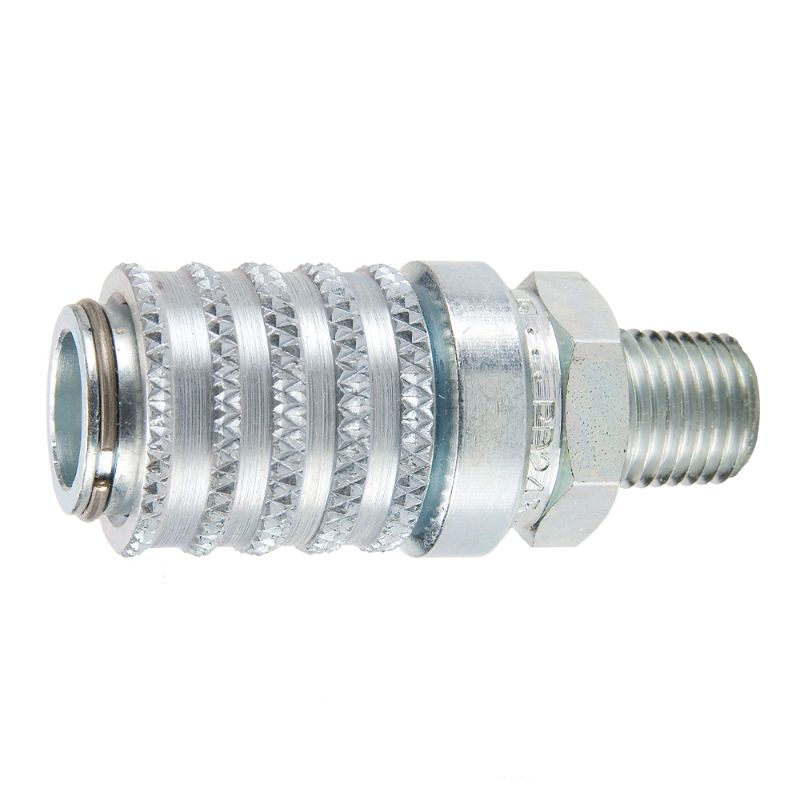

Picture of Parker PD243 - Test Port, Diagnostic Quick Couplings, ISO 15171-1 - PD Series

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker PD243 - Test Port, Diagnostic Quick Couplings, ISO 15171-1 - PD Series

Parker's diagnostic quick couplers and test point nipples provide easy connections for mechanical gauges or specialized diagnostic equipment including Parker's SensoControl meters and accessories.
AFP Availability:
34 In Stock
Grovetown, GA7
Richmond, VA5
Knoxville, TN4
Johnson City, TN4 (Pickup only)
Knoxville, TN4
Richmond, VA3 (Pickup only)
Jacksonville, FL3
Fayetteville, NC2
Mooresville, NC2
Partner Available:119 In Stock
Brand Parker
Part No. PD243
$71.44/each
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEASpecifications MetSAE J1502 / ISO 15171-1
Minimum Operating Temperature-40 °FDivisionQuick Coupling Division
Flow Rate0.8 Gal/minProduct TypePush to Connect
Seal MaterialNitrileValve TypeNon-spill
Maximum Operating Pressure6000 psiApplicationDiagnostic
Hex Size0.81 inchBody Size1/8 inch
Plating TypeZinc with clear trivalent chromateMaximum Operating Temperature250 °F
Body MaterialSteelConnection Thread Size (inch)1/4 - 18
Tube Size (inch)naCoupling HalfFemale Coupler
Connection TypeMale NPTF
