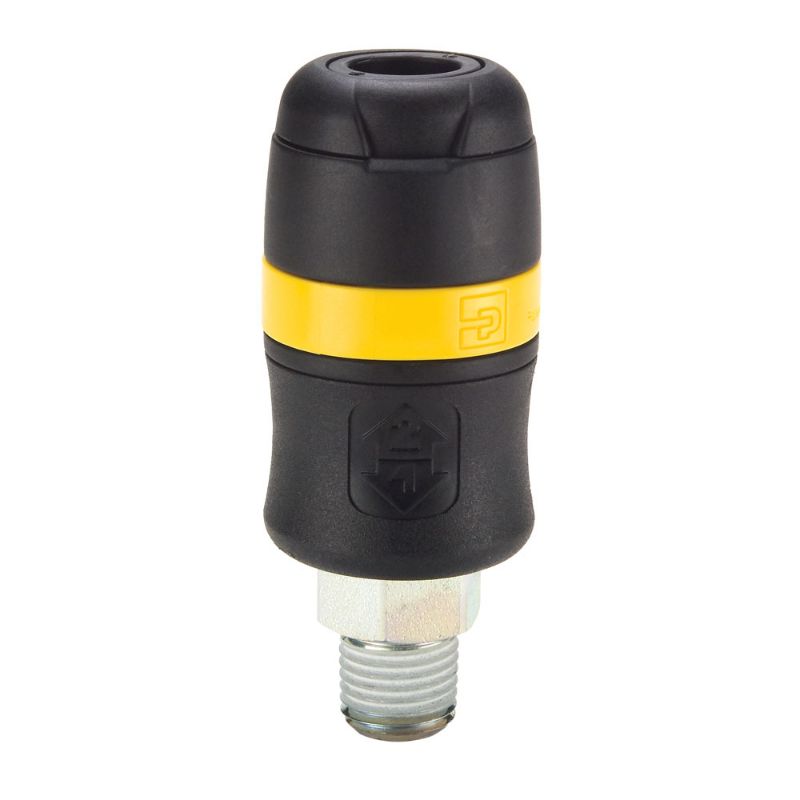

Parker PBS-251-4MP - ISO 4414 Industrial & European Interchange, Safety Quick Connect Air Couplers - Tool-Mate Exhaust Series

Parker's pressure venting pneumatic, air quick connect couplers are ideal for use in applications where low pressure air lines require fast and easy connection and disconnection with a controlled pressure release system.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PBS-251-4MP

Products specifications

Attribute name	Attribute value
Sleeve Type	Push-to-Connect	Maximum Operating Temperature	160 °F
Coupling Half	Coupler	Specifications Met	ISO 4414 controlled pressure release
Media	Compressed Air	Valve Type	Tubular
Maximum Operating Pressure	300 psi	Special Option	Exhaust - Venting
Seal Material	Nitrile	Lock Type	Polyacetate Locking Fingers
Minimum Operating Temperature	0 °F	Body Material	Polyamide
Division	Quick Coupling Division	Application	Air
Dimensional Weight	0.06291129496402877 lb	Plating Type	Galvanized Steel Port Ends
Interface Option	Connects with pneumatic Industrial Interchange nipples A-A-59439 (MIL-C-4109F, ISO 6150-B)	Body Size	1/4"
Connection Thread Size	1/4"-18	Connection Type	Male, NPTF
Thread Style	Male

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
