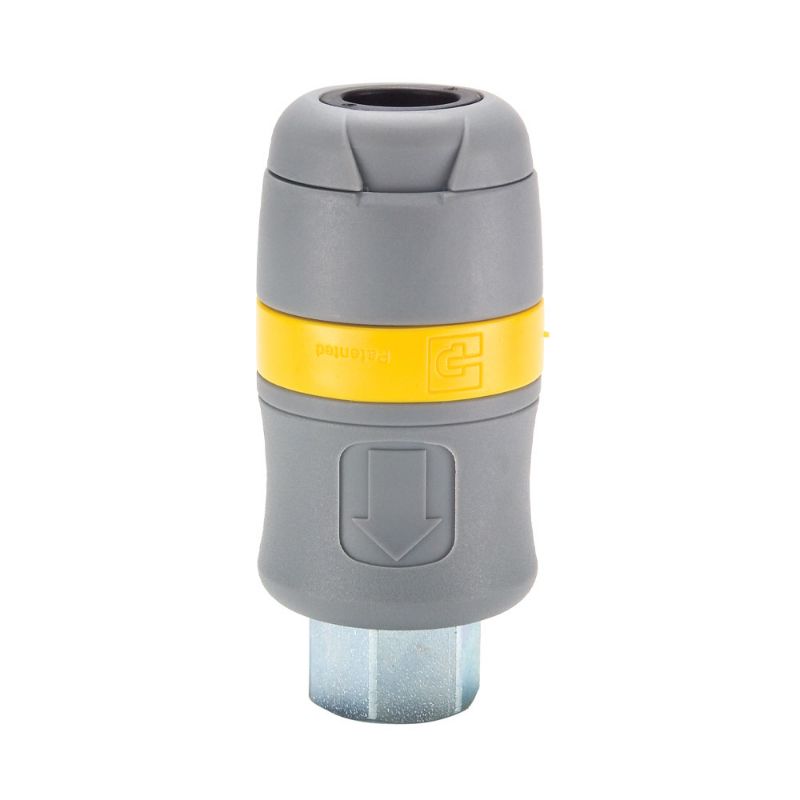

Parker PBH-371-8FP - Industrial & European Interchange, Quick Connect Air Couplers - Tool-Mate Standard Series

Parker's non-marking, lightweight, pneumatic, air quick connect couplers are ideal for use across a spectrum of applications where low pressure air lines require fast and easy connection and disconnection.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PBH-371-8FP

$66.94

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Minimum Operating Temperature	0 °F
Lock Type	Polyacetate Locking Fingers	Seal Material	Nitrile
Valve Type	Tubular	Plating Type	Galvanized Steel Port Ends
Specifications Met	Connects with pneumatic Industrial Interchange nipples A-A-59439 (MIL-C-4109F, ISO 6150-B)	Maximum Operating Pressure	300 psi
Body Material	Polyamide	Dimensional Weight	0.12582258992805753 lb
Division	Quick Coupling Division	Application	Air
Media	Compressed Air	Coupling Half	Coupler
Maximum Operating Temperature	160 °F	Sleeve Type	Push-to-Connect
Connection Thread Size	1/2"-14	Body Size	3/8"
Connection Type	Female, NPTF	Thread Style	Female
Interface Option	Connects with pneumatic Industrial Interchange nipples A-A-59439 (MIL-C-4109F, ISO 6150-B)
