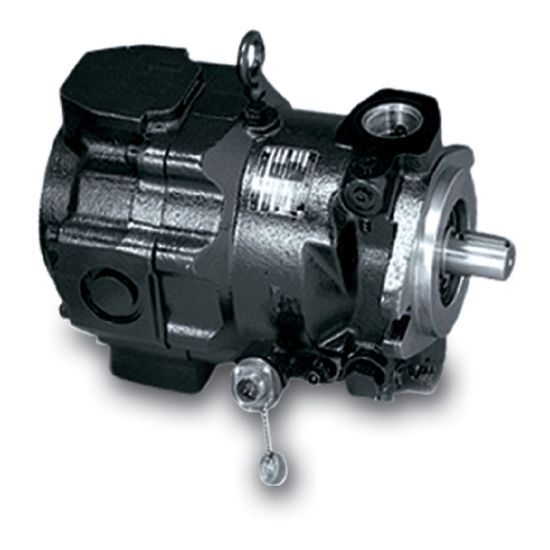

Parker PAVC PISTON PUMP - Medium Pressure/Super Charged Piston Pump - PAVC Series

Parker PAVC Medium Pressure/Super Charged Hydraulic Piston Pumps provide reliable high-speed operation. With a pressure rating of 3,000 psi, they are ideal for a variety of medium pressure mobile and industrial applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PAVC PISTON PUMP

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Displacement	6.1	Maximum Kinematic Viscosity	4000
Mounting Option	SAE	Shaft Type	SAE
Maximum Flow Rate	260	Minimum Fluid Temperature	-40
Body Material	Cast Iron	Technology	Hydraulics
Maximum Vacuum Flow Rate	n/a	Division	Hydraulic Pump and Power Systems Division
Charge Pump Included	Yes	Energy Recovery Capability	No
Maximum Operating Speed	2600	Port Location	Rear Ports
Maximum Fluid Temperature	160	Control Method	Load Sense
For Fluid Type	Phosphate-ester	Flow Rate	260
Media	Hydraulic Fluids	Drain Option	Yes
Port Type	Straight Threaded	Port Connection	SAE
Configuration	Tandem	Maximum Noise Level	79
Direction of Rotation	Counterclockwise	Displacement	100
Operating Pressure	210	Pump Type	Variable
Filter Included	No	Sensor Type	n/a
Circuit Path	Open	Thru-Drive Capability	Yes
Radial Load Capacity	230	Weight	40 to 110
Maximum Operating Pressure	3000	Minimum Kinematic Viscosity	80
