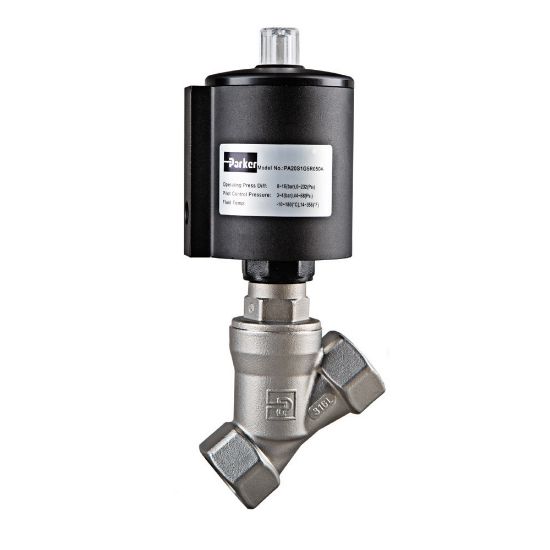

Parker PA32S1N7S063A - PA Series Angle Seat Valves

2-way pneumatically-actuated Angle Seat Valves (ASV) available in on/off and proportional control models. Optional position feedback technologies are also available.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PA32S1N7S063A

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Parker	Technology	Fluid & Gas Handling
Division	Fluid Control Division	Function	Normally Closed
Seal Material	PTFE	Connection Type	NPT
Maximum Operating Temperature	140 °F	Connection Size	1-1/4 inch
Specifications Met	European Pressure Equipmemt Directive 2014/68/EU in accordance with Annex II, Category II, Group 2, Module A1	Maximum Operating Pressure	232.0 psi
For Fluid Type	Inert Gas	Product Type	Angle Valve
Division	Fluid Control Division	Signal Input	n/a
Actuator Size	63 mm	Body Material	304 Stainless Steel
Configuration	Normally Closed - Over Seat	Product Style	Pneumatic - On/Off
Actuation Type	Air Pilot	Maximum Pilot Pressure	145 psi
Materials of Construction	Aluminium (Actuator Housing)	Maximum Fluid Temperature	356 °F
Minimum Operating Pressure	0 psi	Orifice Size	1.22
Flow Coefficient	28 Cv	Minimum Pilot Pressure	43.5 - 80 psi
Port Size	1-1/4 inch	Function	2-Way
Body Material	304 Stainless Steel	Configuration	Normally Closed - Over Seat
Maximum Steam Pressure	130 psi	Actuator Housing Material	Aluminium
Maximum Operating Pressure	232 psi	Minimum Pilot Pressure	43.5 - 80 psi
