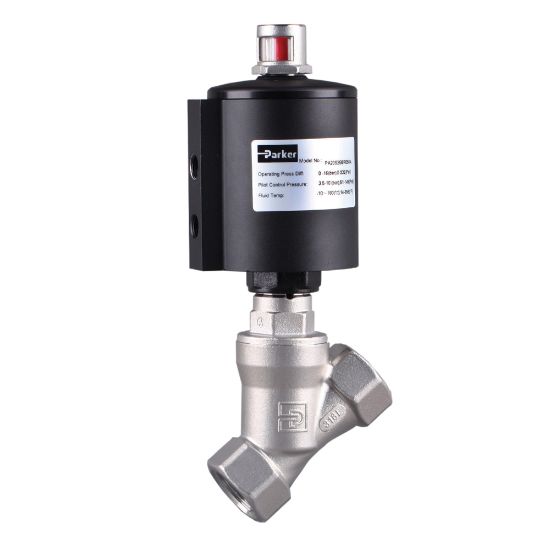

Parker PA10S3N3S050A - PA Series Angle Seat Valves

2-way pneumatically-actuated Angle Seat Valves (ASV) available in on/off and proportional control models. Optional position feedback technologies are also available.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PA10S3N3S050A

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Parker	Technology	Fluid & Gas Handling
Division	Fluid Control Division	Function	Normally Open
Seal Material	PTFE	Connection Type	NPT
Maximum Operating Temperature	140 °F	Connection Size	3/8 inch
For Fluid Type	Liquids	Specifications Met	European Pressure Equipmemt Directive 2014/68/EU in accordance with Annex II, Category II, Group 2, Module A1
Maximum Operating Pressure	232.0 psi	Product Type	Angle Valve
Division	Fluid Control Division	Orifice Size	0.51
Signal Input	n/a	Actuator Size	50 mm
Body Material	304 Stainless Steel	Configuration	Normally Open - Under Seat
Product Style	Pneumatic - On/Off	Actuation Type	Air Pilot
Flow Coefficient	5.5 Cv	Maximum Pilot Pressure	145 psi
Minimum Pilot Pressure	50.8 psi	Materials of Construction	Aluminium (Actuator Housing)
Maximum Fluid Temperature	356 °F	Minimum Operating Pressure	0 psi
Port Size	3/8 inch	Function	2-Way
Body Material	304 Stainless Steel	Configuration	Normally Open - Under Seat
Maximum Steam Pressure	130 psi	Minimum Pilot Pressure	50.8 psi
Actuator Housing Material	Aluminium	Maximum Operating Pressure	232 psi
