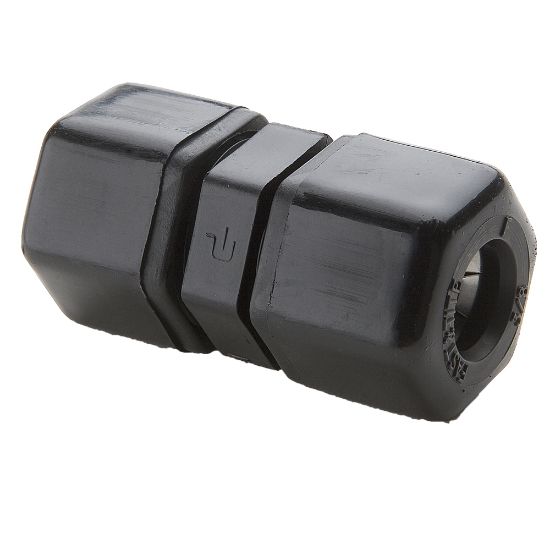

Picture of Parker P8UC8 - Compression Style Plastic Fittings, Fast-Tite

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker P8UC8 - Compression Style Plastic Fittings, Fast-Tite

Parker's Fast & Tite fittings installs in seconds without tools for a leak proof seal. Fast & Tite meets FDA and NSF-51 requirements for food contact.
Availability:
1 Limited Stock
Knoxville, TN1
Partner Available:281 In Stock
Brand Parker
Part No. P8UC8
$3.85
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEADivisionFluid System Connectors Division
Maximum Operating Temperature212 °FMinimum Operating Temperature0 °F
Maximum Operating Pressure10 barMediaWater, Air, Other Compatible Fluids
ApplicationFiltration, Purification, DispensingTube MaterialThermoplastic, Glass, Soft Metal
O-Ring MaterialNitrileSpecifications MetFDA, NSF-51
Gripping Ring Material302 Stainless SteelDimensional Weight0.5504 lb
Body MaterialPolypropyleneConfigurationTube to Tube
Connection 1 TypeCompressionConnection 2 TypeCompression
Connection 1 Tube Outside Diameter1/2" (O.D.)Connection 2 Tube Outside Diameter1/2" (O.D.)
ShapeUnionBody MaterialBlack Polypropylene
