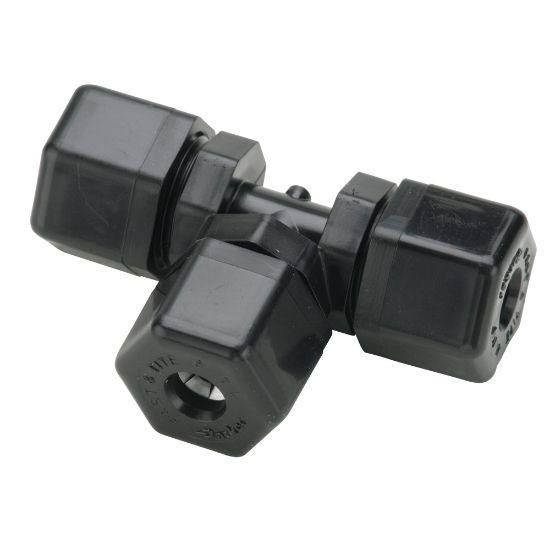

Parker P8TU8 - Compression Style Plastic Fittings, Fast-Tite

Parker's Fast & Tite fittings installs in seconds without tools for a leak proof seal. Fast & Tite meets FDA and NSF-51 requirements for food contact.

Availability:	Quote Required
Partner Available:	272 In Stock

Brand Parker

Part No. P8TU8

$7.28

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Fluid System Connectors Division
Minimum Operating Temperature	-18 °C	Maximum Operating Temperature	100 °C
Maximum Operating Pressure	10 bar	Media	Water, Air, Other Compatible Fluids
Application	Filtration, Purification, Dispensing	Tube Material	Thermoplastic, Glass, Soft Metal
O-Ring Material	Nitrile	Specifications Met	FDA, NSF-51
Gripping Ring Material	302 Stainless Steel	Dimensional Weight	2.7594 lb
Body Material	Polypropylene	Shape	Tee
Configuration	Tube to Tube	Connection 1 Type	Compression
Connection 2 Type	Compression	Connection 1 Tube Outside Diameter	1/2" (O.D.)
Connection 2 Tube Outside Diameter	1/2" (O.D.)	Body Material	Black Polypropylene
