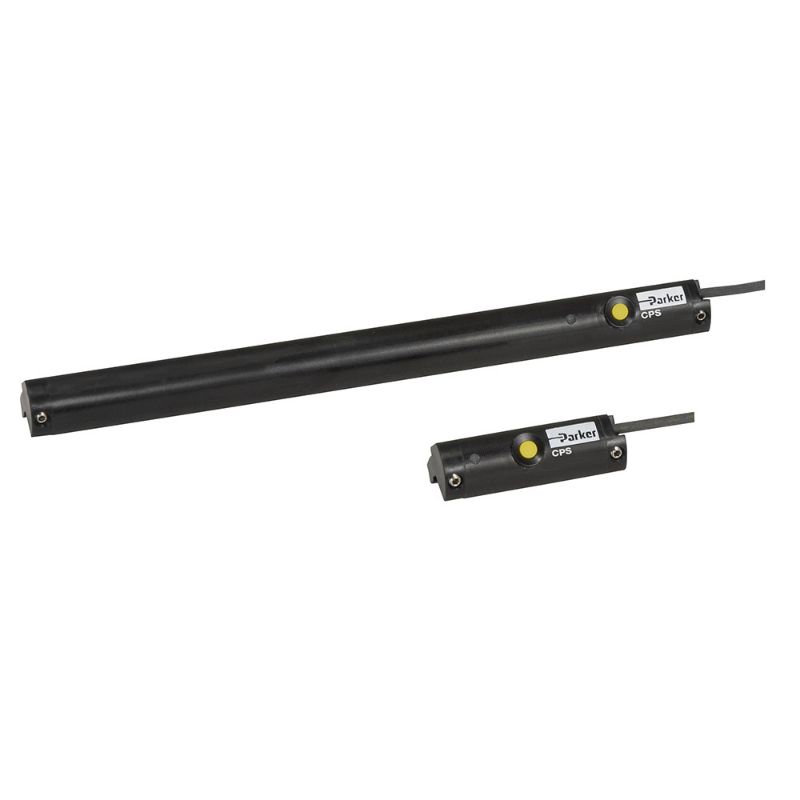

Parker P8SAGACHF - CPS (Continuous Position Sensor) Actuator Accessories - P8S Series

P8S Continuous Position Sensors enable contactless monitoring of cylinder strokes from 32mm to 256mm. Continuous supplied data via analog output or IO-Link is ideally suited for quality and process control functions.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. P8SAGACHF

$560.32/each

Products specifications

Attribute name	Attribute value
Input Voltage	15 to 30 VDC	Signal Output	Analog
Vibration Resistance	30 g 11 ms / 10 … 55 Hz, 1 mm	Output Current Rating	4 to 20 mA
Product Type	Sensor Component	Linearity	0.3 mm
Minimum Ambient Temperature	-20 °C	Technology	Pneumatics
Division	Pneumatic Division	Sensing Range	32 to 256 mm depending on Type.
Connection Type	M12 IO-Link (knurled nuts)	Maximum Ambient Temperature	70 °C
Screw Material	Stainless Steel	Ingress Protection Rating	IP67 (according to EN 60529)
Repeatability	0.06 % Full Scale Range (>= 0.1 mm)	Cylinder Type	Profile with T-slot
Bore Diameter	n/a	Cable Type	PUR (Polyurethane) Cable length 0.3m
Product Series	Pneumatic Cylinder Accessories	LED Color	Yellow (Analog)
Overall Length	0 to 192 mm	Housing Material	Plastic Polyamid PA12
Specifications Met	IO-Link	Output Voltage	0 to 10 V
Installation	Drop-in fixed by allen key 2.5 mm	Resolution	0.03 % Full Stroke. Full Scale Range (max >=0.05 mm)
Output Type	Analog	Sensing Range (mm)	0-192
