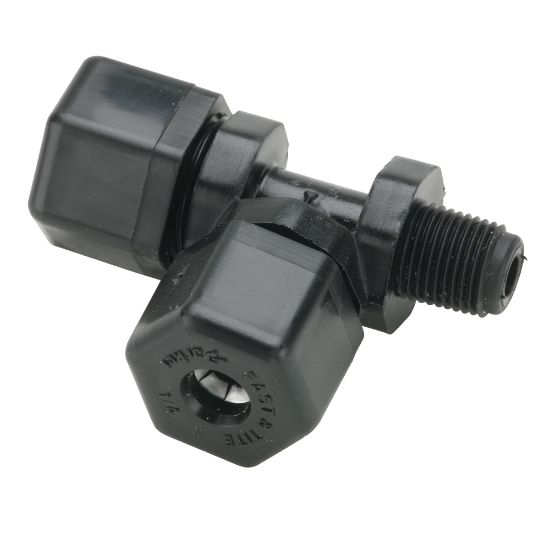

Parker P8MR6 - Compression Style Plastic Fittings, Fast-Tite

Parker's Fast & Tite fittings installs in seconds without tools for a leak proof seal. Fast & Tite meets FDA and NSF-51 requirements for food contact.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. P8MR6

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Fluid System Connectors Division	Maximum Operating Temperature	100 °C
Minimum Operating Temperature	0 °F	Maximum Operating Pressure	150 psi
Application	Dispensing	Tube Material	Thermoplastic
Specifications Met	NSF 51	For Fluid Type	Other Compatible Fluids
Seal Material	Nitrile (O-Ring)	Gripping Ring Material	Stainless Steel AISI 302
Body Material	Polypropylene	Connection 2 Thread Size	3/8"
Connection 1 Type	Compression	Connection 1 Tube Outside Diameter	1/2" (O.D.)
Configuration	Tube to Pipe	Shape	Run Tee - Male
Connection 2 Type	NPTF	Body Material	Black Polypropylene
