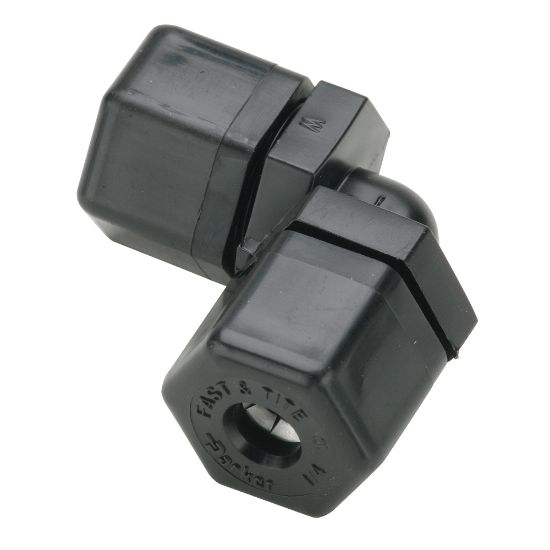

Parker P8EU8 - Compression Style Plastic Fittings, Fast-Tite

Parker's Fast & Tite fittings installs in seconds without tools for a leak proof seal. Fast & Tite meets FDA and NSF-51 requirements for food contact.

AFP Availability:	Quote Required
Partner Available:	203 In Stock

Brand Parker

Part No. P8EU8

$5.05/each

Products specifications

Attribute name	Attribute value
UOM	EA	O-Ring Material	Nitrile
Dimensional Weight	0.5504 lb	Division	Fluid System Connectors Division
Maximum Operating Temperature	100 °C	Gripping Ring Material	302 Stainless Steel
Maximum Operating Pressure	150 psi	Application	Filtration, Purification, Dispensing
Tube Material	Thermoplastic, Glass, Soft Metal	Specifications Met	FDA, NSF-51
Media	Water, Air, Other Compatible Fluids	Body Material	Polypropylene
Minimum Operating Temperature	-18 °C	Body Material	Black Polypropylene
Connection 1 Type	Compression	Connection 1 Tube Outside Diameter	1/2" (O.D.)
Shape	Elbow 90°	Configuration	Tube to Tube
Connection 2 Tube Outside Diameter	1/2" (O.D.)	Connection 2 Type	Compression
