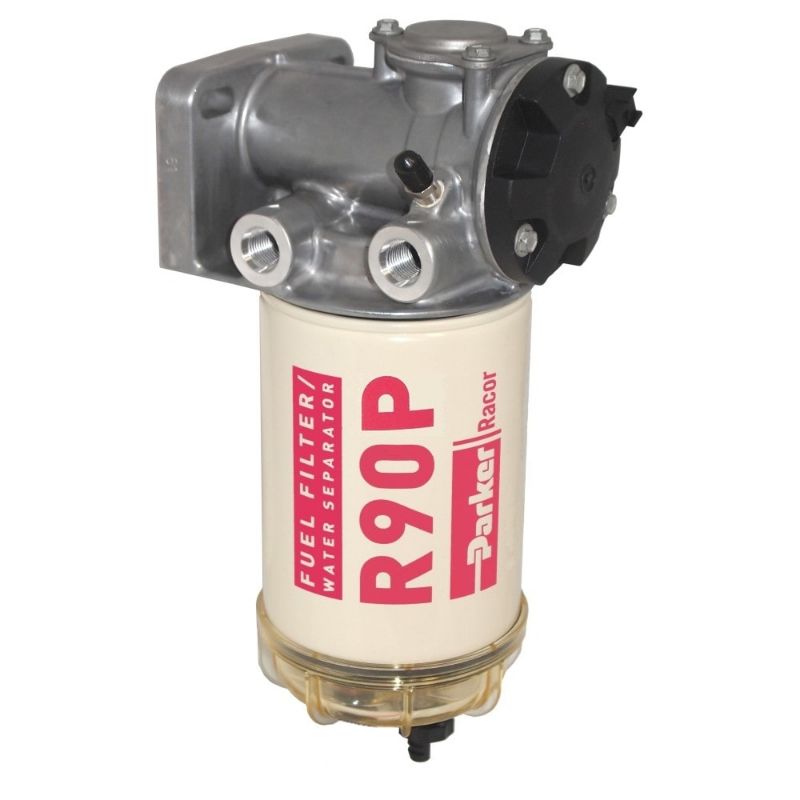

Parker P790R30 - Fuel Filter Water Separator with Integrated Priming Pump – Racor 700 Series

The Racor 700 Series Fuel Filter Water Separator is a two-stage filtration system designed for use in diesel engine applications. Its integrated fuel pump allows for easy system priming and eliminates messy filter pre-filling and engine hard starting.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. P790R30

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Engine Mobile Original Equipment Division	Clean Pressure Drop	0.25
Brand	Racor	Mounting Type	Head Bracket
Optional Accessories	See Product Overview & Support Tabs	Compatible Element	R90P
Width	4.3	Bowl Type	Clear Engineering Plastic
Depth	6.5	Port Size	7/8"-14
Application	Electric Priming	For Fluid Type	Diesel
Pump Type	47 gph (170 lph)	Product Series	Cartridge FF/WS Pump
Water Sensor Option	Included	Height	12.8
Flow Rate	90 gph / 340 lph	Micron Rating	98% @ 30 microns
Pump Type	12V DC, Brushed
