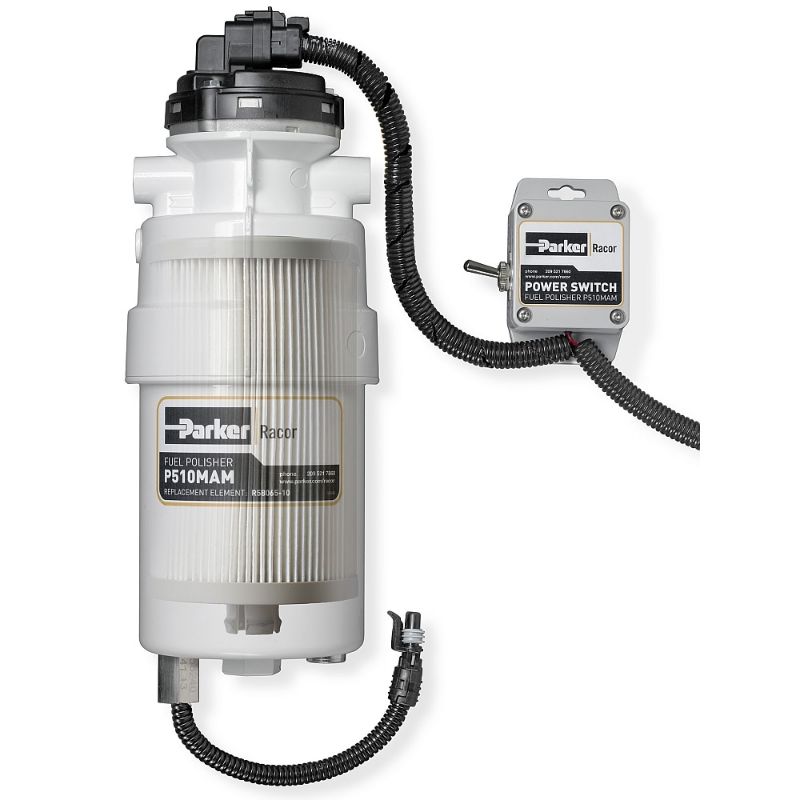

Parker P510MAM - Pump and Filter Fuel Polishing System – Racor P510MAM Series

The Racor P510MAM Series Pump and Filter Fuel Polishing System helps extend the life of on-board filters by removing contaminants from stored fuel. It can be used for continuous operation on fuel tanks, or as part of a day-tank transfer system.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. P510MAM

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Port Size	M16x1.5 ORB Adapters available	Application	Fuel Polishing System
Heat Type	None	For Fluid Type	Diesel / B20
Compatible Element	R58039-2 = 2 micron<br>R58039-10 = 10 micron<br>R58039-30 = 30 mcron	Flow Rate	73 Gal/hour
Product Series	P-Series	Clean Pressure Drop	0.8 psi
Mounting Type	Bracket Included	Weight	4.2 lb
Optional Accessories	Fitting adapters available. See Product Overview & Support Tabs	Division	Engine Mobile Original Equipment Division
Brand	Racor	Height	11.5 inch
Water Sensor Option	Included Stainless Steel Probe	Pump Type	12/24V DC Brushless, Continuous duty
Depth	5.2 inch	Width	11.4 cm
Bowl Type	Powder Coated Aluminum	Series Type	Cartridge FF/WS Pump

Product resources

Literature and Reference Materials

Distributor Support, Literature and Reference Materials, Selector Guides

Racor--P510MAM Fuel Polisher--RSL0381 (PDF)
