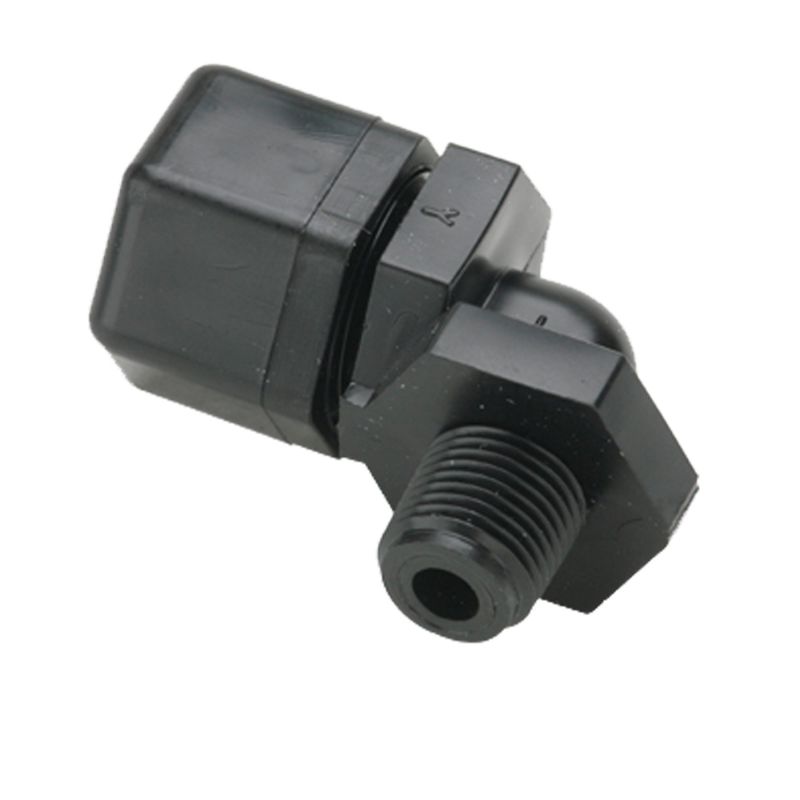

Parker P4ME6 - Compression Style Plastic Fittings, Fast-Tite

Parker's Fast & Tite fittings installs in seconds without tools for a leak proof seal. Fast & Tite meets FDA and NSF-51 requirements for food contact.

AFP Availability:	Quote Required
Partner Available:	87 In Stock

Brand Parker

Part No. P4ME6

$2.68/each

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Fluid System Connectors Division
Dimensional Weight	0.5504 lb	For Fluid Type	Air
Seal Material	Nitrile (O-Ring)	Specifications Met	FDA
Tube Material	Thermoplastic	Maximum Operating Pressure	300 psi
Gripping Ring Material	Stainless Steel AISI 302	Minimum Operating Temperature	-18 °C
Body Material	Polypropylene	Application	Filtration
Maximum Operating Temperature	100 °C	Connection 1 Type	Compression
Connection 1 Tube Outside Diameter	1/4" (O.D.)	Connection 2 Type	NPTF
Configuration	Tube to Pipe	Body Material	Black Polypropylene
Shape	Elbow 90°	Connection 2 Thread Size	3/8"
