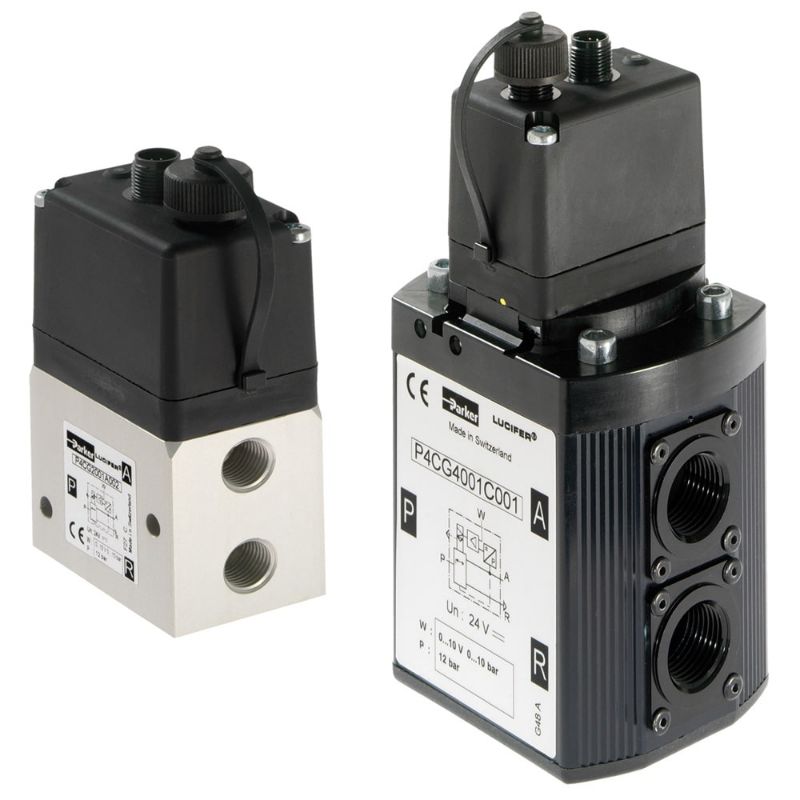

Parker P4CN4001C001 - Electronic Proportional Regulators - EPP4 Series

EPP4 programmable electronic proportional regulator allows for regulation of outlet pressure proportionally to an electrical control signal. This unit utilizes a user friendly Calys software to configure all parameters.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. P4CN4001C001

$1,396.66

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Port Type	NPT
Inlet Pressure Rating	0 to 10.5 bar	Maximum Flow Rate	70 \| 150 m3/hour
Port Size	1/2"	Ingress Protection Rating	NEMA 4
Division	Pneumatic Division	Media	40μ Filtered compressed air \| Inert gas
Operating Temperature	32° to 140° °F	Display Type	n/a
Response Time	Filling: 20 / Emptying: 20 ms	Weight	6.3 lb
Input Voltage	24VDC \| 12VDC \| 24VAC \| 120/110VAC	Product Type	Electronic Proportional Regulator (pulse width modulated)
Electrical Connection	M23 Mini; 6-Pin \| M12 Micro; 6-Pin \| Conduit	Power Consumption	1.2 \| 1.6 \| 1.8 \| 2.4 W
Configuration	Software Programmable	Control Method	8-pin M12 & 5-pin M12
Pressure Control Range	0 to 150 psig	Port Size	1/2"
Thread Type	NPT

Product resources

Literature and Reference Materials
