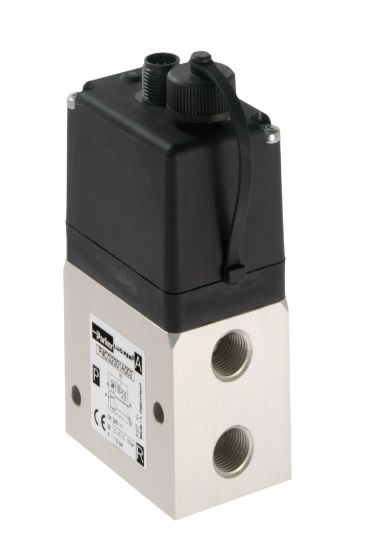

Parker P4CN2001C001 - Electronic Proportional Regulators - EPP4 Series

EPP4 programmable electronic proportional regulator allows for regulation of outlet pressure proportionally to an electrical control signal. This unit utilizes a user friendly Calys software to configure all parameters.

Availability:	Quote Required
Partner Available:	1 Limited Stock

Brand Parker

Part No. P4CN2001C001

$1,338.17

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Product Type	Electronic Proportional Regulator (pulse width modulated)
Input Voltage	24VDC \| 12VDC \| 24VAC \| 120/110VAC	Maximum Flow Rate	41 \| 88 SCFM
Electrical Connection	M23 Mini; 6-Pin \| M12 Micro; 6-Pin \| Conduit	Operating Temperature	0° to 60° °C
Power Consumption	1.2 \| 1.6 \| 1.8 \| 2.4 W	Pressure Control Range	0 to 10.5 bar
Weight	2.9 kg	Control Method	8-pin M12 & 5-pin M12
Media	40μ Filtered compressed air \| Inert gas	Ingress Protection Rating	NEMA 4
Division	Pneumatic Division	Configuration	Software Programmable
Display Type	n/a	Port Type	NPT
Inlet Pressure Rating	0 to 10.5 bar	Response Time	Filling: 20 / Emptying: 20 ms
Port Size	1/4"	Thread Type	NPT
Port Size	1/4"

Product resources

Literature and Reference Materials
