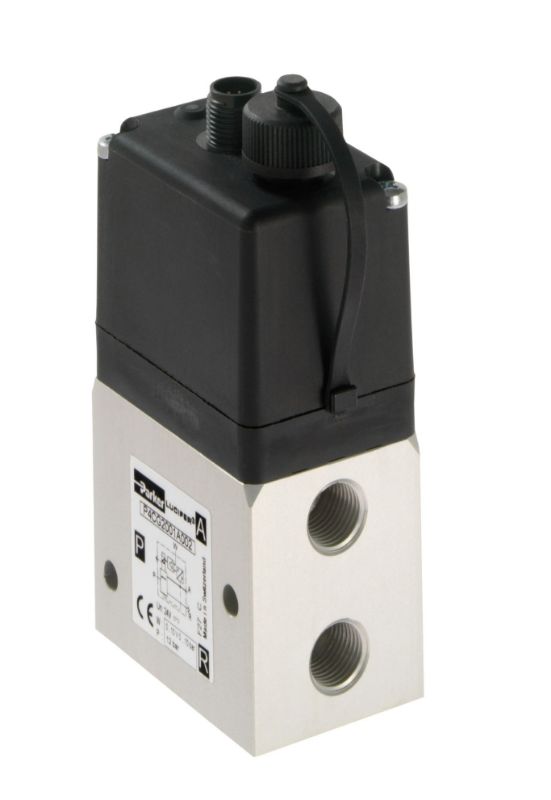

Parker P4CG2001C001 - Electronic Proportional Regulators - EPP4 Series

EPP4 programmable electronic proportional regulator allows for regulation of outlet pressure proportionally to an electrical control signal. This unit utilizes a user friendly Calys software to configure all parameters.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. P4CG2001C001

$0.01

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Display Type	n/a
Response Time	Filling: 20 / Emptying: 20 ms	Weight	6.3 lb
Port Type	BSP	Maximum Flow Rate	41 \| 88 SCFM
Product Type	Electronic Proportional Regulator (pulse width modulated)	Input Voltage	24VDC \| 12VDC \| 24VAC \| 120/110VAC
Electrical Connection	M23 Mini; 6-Pin \| M12 Micro; 6-Pin \| Conduit	Configuration	Software Programmable
Control Method	8-pin M12 & 5-pin M12	Power Consumption	1.2 \| 1.6 \| 1.8 \| 2.4 W
Operating Temperature	0° to 60° °C	Port Size	1/4"
Inlet Pressure Rating	0 to 10.5 bar	Pressure Control Range	0 to 10.5 bar
Ingress Protection Rating	NEMA 4	Media	40μ Filtered compressed air \| Inert gas
Division	Pneumatic Division	Thread Type	BSP
Port Size	1/4"
