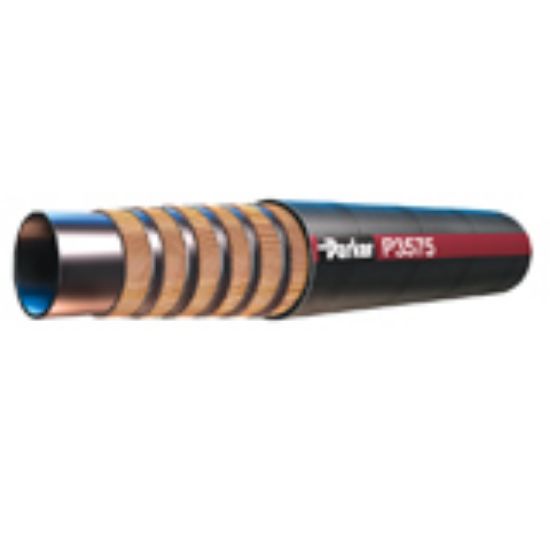

Parker P3575-32 - Hydraulic Constant Working Pressure Cementing Hose 5000/8000 PSI - P35/P56 Hose

Parker’s P35/P56 hoses were designed to deliver dependable, durable, long-lasting, and leak-free connections for today’s oil and gas cementing applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. P3575-32

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Application	Mud Service	Hose Reinforcement Material	4 or 6 Spirals of Steel Wire
Outside Diameter	2.950 inch	Division	Hose Products Division
Minimum Bend Radius	630 mm	Nominal Hose Inside Diameter	51 mm
Media	Petroleum Hydraulic Fluids	Maximum Operating Temperature	70 °C (Water and water/oil emulsion and water/glycol hydraulic fluids)
Minimum Operating Temperature	-40 °C (Petroleum Based Hydraulic Fluids)	Compatible Fitting	S6 Series
Hose Inner Tube Material	Synthetic Rubber	Weight	7.89 kg/m
Inside Diameter	51 mm	Size	-32
Cover Material	Synthetic Rubber Abrasion Resistant	Maximum Operating Pressure	35 MPa
Maximum Working Pressure (psi)	5000	Hose Cover Type	Extremely thick SuperTough

Product resources

Literature and Reference Materials
