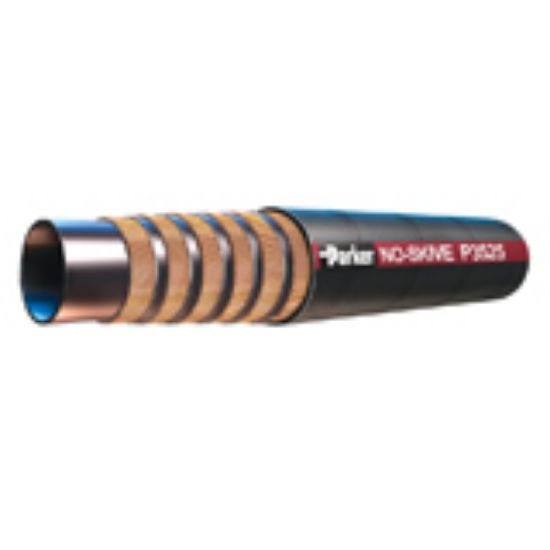

Parker P3525-32 - Hydraulic Constant Working Pressure Cementing Hose 5000/8000 PSI - P35/P56 Hose

Parker’s P35/P56 hoses were designed to deliver dependable, durable, long-lasting, and leak-free connections for today’s oil and gas cementing applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. P3525-32

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Operating Temperature	70 °C (Cement delivery)	Nominal Hose Inside Diameter	51 mm
Division	Hose Products Division	Inside Diameter	2 inch
Maximum Operating Pressure	35 MPa	Cover Material	Synthetic Rubber Abrasion Resistant
Compatible Fitting	S6 Series	Size	-32
Hose Reinforcement Material	4 or 6 Spirals of Steel Wire	Minimum Bend Radius	25 inch
Hose Inner Tube Material	Synthetic Rubber	Minimum Operating Temperature	-40 °F Water & Water/Oil Emulsion & Water/Glycol Hydraulic Fluids
Application	Petroleum Base Hydraulic Fluids	Outside Diameter	2.820 inch
Media	Lubricants	Weight	5 lb/ft
Maximum Working Pressure (psi)	5000	Hose Cover Type	SuperTough
