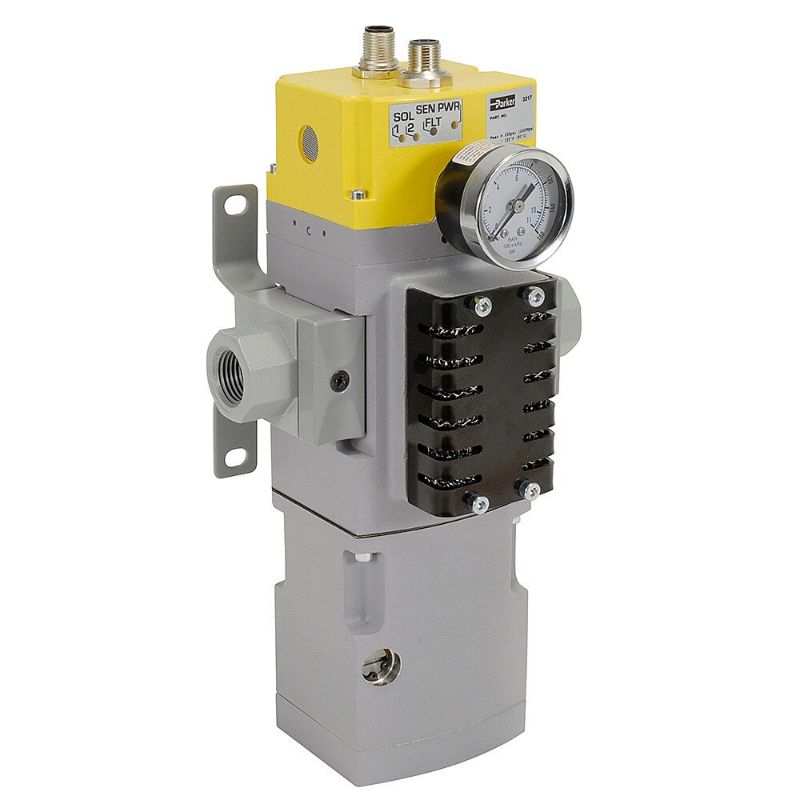

Parker P33TB96AAED - Global FRL Valves (Safety Exhaust)

The P33 Safety Exhaust valve is designed to safely remove trapped air from machinery bringing machinery to a safe state. This product is externally monitored and designed for two channel safety architecture up to Category 4, Performance level e.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. P33TB96AAED

$1,209.76

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Input Voltage	24
Body Material	Cast Aluminum	Application	Pneumatic Safety Systems (up to Category 4 / performance level ‘e’)
Height	26.19	Product Style	Electro-Pneumatic (Solenoid Actuated)
Mounting Type	Inline / Stand-Alone or Modular Mount (on P32/P33 FRL)	Specifications Met	Category 4, Performance Level e per EN ISO 13849-1 (pending)
Industry	General Industry	Operating Temperature	4 to 50
Maximum Operating Pressure	150	Function	3/2 Normally-Closed
Brand	Parker	Flow Rate	≤ 265
Port Type	NPT	Technology	Pneumatics
Division	Pneumatic Division	Width	8
Weight	2.9	Product Type	Safety Exhaust Valve
Electrical Connection	M12 (x2)	Minimum Operating Pressure	10
Seal Material	Nitrile Butadiene Rubber (NBR)	Length	10.93
Port Size	3/4	Port Type	[B9] - NPTF
Pressure Gauge	[ED] - Digital Gauge	Sensor Connection	[A] - M12 pins: 1&2, 1&4, common 3
Solenoid Connection	[A] - M12 pins: 2 & 4 with common 3	Product Style	[P33T] - With Soft Start
Port Size	[6] - 3/4 inch	Options	Black Grill
