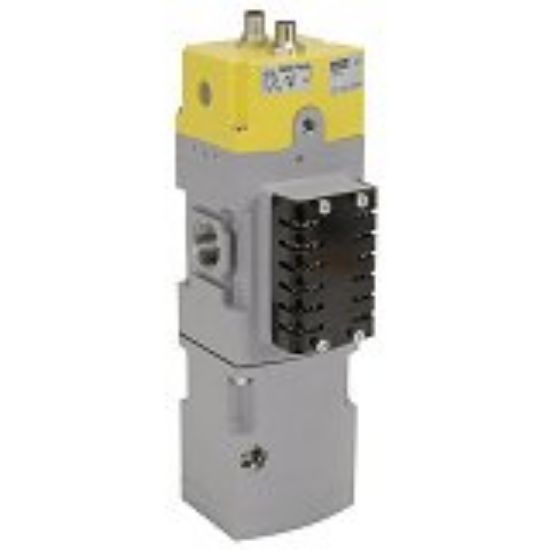

Parker P33TB16DCEN - Global FRL Valves (Safety Exhaust)

The P33 Safety Exhaust valve is designed to safely remove trapped air from machinery bringing machinery to a safe state. This product is externally monitored and designed for two channel safety architecture up to Category 4, Performance level e.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. P33TB16DCEN

$1,171.93

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Industry	General Industry<br>Automotive<br>Packaging
Weight	6.5 lb	Width	3.15 inch
Product Type	Safety Exhaust Valve	Specifications Met	Category 4, Performance Level e per EN ISO 13849-1 (pending)
Application	Pneumatic Safety Systems (up to Category 4 / performance level ‘e’)	Port Type	NPT<br>BSPP
Flow Rate	up to 265 SCFM	Product Style	Electro-Pneumatic (Solenoid Actuated)<br>Externally Monitored<br>With Soft Start
Port Size	3/4 inch	Body Material	Cast Aluminum
Seal Material	NBR	Technology	Pneumatics
Operating Temperature	4° to 50° °C	Division	Pneumatic Division
Minimum Operating Pressure	10 psig	Mounting Type	Inline / Stand-Alone or Modular Mount (on P32/P33 FRL)
Height	26.19 cm	Length	10.93 cm
Brand	Parker	Input Voltage	24V DC
Electrical Connection	Two M12 connections	Maximum Operating Pressure	150 psig
Function	3/2 Normally-Closed	Options	Black Grill
Port Type	[B1] - BSPP "G"	Pressure Gauge	[EN] - None
Port Size	[6] - 3/4 inch	Sensor Connection	[C] - M12 pins: 5&2, 1&4, common 3
Product Style	[P33T] - With Soft Start	Solenoid Connection	[D] - M12 pins: 2 & 4 for bipolar outputs
